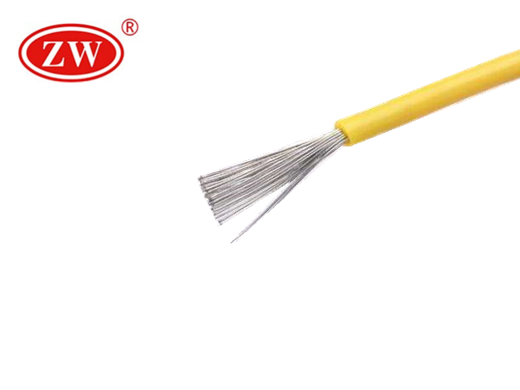

12 AWG Cable

  • Conductor:Tinned Copper
  • Insulation: Silicone Rubber

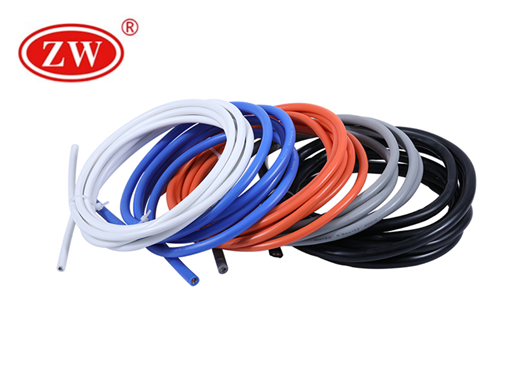

  • Insulation Color: Red - Yellow - Blue- White - Black- Yellow- Green - Brown - Orange- Purple
  • Normal volt: 600V
  • Standard: ISO9001, UL, RoHS
Get A Quote For Free

12 AWG Cable Specification

  • Conductor

    Tinned Copper

  • Sheath

     Silicone Rubber

  • Min Operating Temperature

    -36°C

  • Max Operating Temperature

    260°C

  • Core Colours

    Red - Yellow - Blue- White - Black- Yellow- Green - Brown - Orange- Purple

  • Current Carrying Capacity

    For current ratings refer to UL Strandard

The Characteristics of 12 AWG Cable

12 AWG Silicone Cable  use electronic industry. It can be used for temperature compensation wire, low temperature wire, high temperature heating wire, anti-aging wire and flame retardant wire; household appliances industry, can be used for air conditioners, microwave ovens, electronic disinfection cabinet, rice cookers, electronic thermos, , Electric oven, electric wok, lighting, lighting and other internal wiring.For applications where the cable is subject to stretching, Siccet offers more efficient solutions with silicone anti-tear sheaths obtained with special compounds.
Standard:
UL758, UL62, UL1581
Resistance to chemical substances:
12 AWG Cable has good resistance to lubricating oils, but is severely damaged by alkalis, liquid fuel, chlorinated hydrocarbons, esters, ketones, and ethers. It dilates more so when in contact with naphthenic oils, while aromatic base oils, especially at temperatures above 140 °C, usually make it unusable.
Performance with flame and fire:
12 AWG Cables are flame retardant when exposed to fire. If a silicone rubber insulated cable is attacked by flames, the sheath and insulation crystallize, maintaining their properties for sufficient time to allow the intervention of safety measures. Siccet also uses special compounds which further increase the LOI value by 25%.
Customer Service on 12 AWG Cable :
Being one of the leading Cable Suppliers, we always put quality in the first place. In order to guarantee the performance of 12 gauge cable  , ZW produce the cable in strict accordance with international standards. Our 12 AWG Wire  is very popular in the world. We promise to provide the qualified products for our customers. If you to know more information about 12 AWG Cable  price, just leave your message.

12 AWG Cable Parameter

AWG Conductor Insulation thickness Braiding thickness Cable OD Resistance
size Structure OD Norminal OD   Norminal Tolerance Ω/KM
NO. mm² No./mm mm mm mm mm mm mm Max.
16 1.31 7/0.49 1.55 1.28 4.11 0.2 4.5 ±0.20 14.6
26/0.254
52/0.18
15 1.65 33/0.254 1.75 1.28 4.31 0.2 4.7 ±0.20 11.3
14 2.08 41/0.254 1.95 1.28 4.51 0.2 4.9 ±0.20 8.96
7/0.62
37/0.26
13 2.63 52/0.254 2.15 1.28 4.71 0.2 5.1 ±0.20 7.1
12 3.31 65/0.254 2.5 1.28 5.06 0.2 5.5 0.3 5.64
　 43/0.32 -0.2
11 4.17 83/0.254 2.74 1.28 5.3 0.2 5.7 0.3 4.48
34/0.40 -0.2
10 5.261 35/0.45 3.2 1.28 5.76 0.2 6.2 0.1 3.55
9 6.631 53/0.40 3.98 1.28 6.54 0.2 7 0.1 2.81
8 8.367 70/0.40 4.4 1.28 6.96 0.2 7.4 0.1 2.3
7 10.55 84/0.40 4.6 1.28 7.16 0.25 7.7 0.1 1.79
6 13.3 105/0.40 5.3 1.28 7.86 0.25 8.4 0.1 1.42
5 16.77 133/0.40 6 1.28 8.56 0.25 9.1 0.1 1.12
4 21.15 168/0.40 6.8 1.28 9.36 0.3 10 0.1 0.89
3 26.67 210/0.40 7.6 1.28 10.16 0.3 10.8 0.2 0.707
2 33.62 266/0.40 8.5 1.28 11.06 0.3 11.7 0.2 0.56
1 42.41 217/0.50 9.6 1.28 12.16 0.55 13.3 0.2 0.449
1/0 53.49 276/0.50 11.2 1.53 14.26 0.55 15.4 0.2 0.355
2/0 67.43 342/0.50 12.2 1.53 15.26 0.55 16.4 0.2 0.282
3/0 85.01 437/0.50 13.8 1.53 16.86 0.55 18 0.2 0.223
4/0 107.2 551/0.50 15.5 1.53 18.56 0.65 19.9 0.2 0.177
250kcmil 127 646/0.50 17.5 1.53 20.56 0.65 21.9 0.5 0.151
300kcmil 152 779/0.50 19.5 2.24 22.56 0.65 23.9 0.5 0.125
350kcmil 177 912/0.50 21 2.24 24.06 0.65 25.4 0.5 0.108
400kcmil 203 1036/0.50 23 2.24 26.06 0.65 27.4 0.5 0.0942
