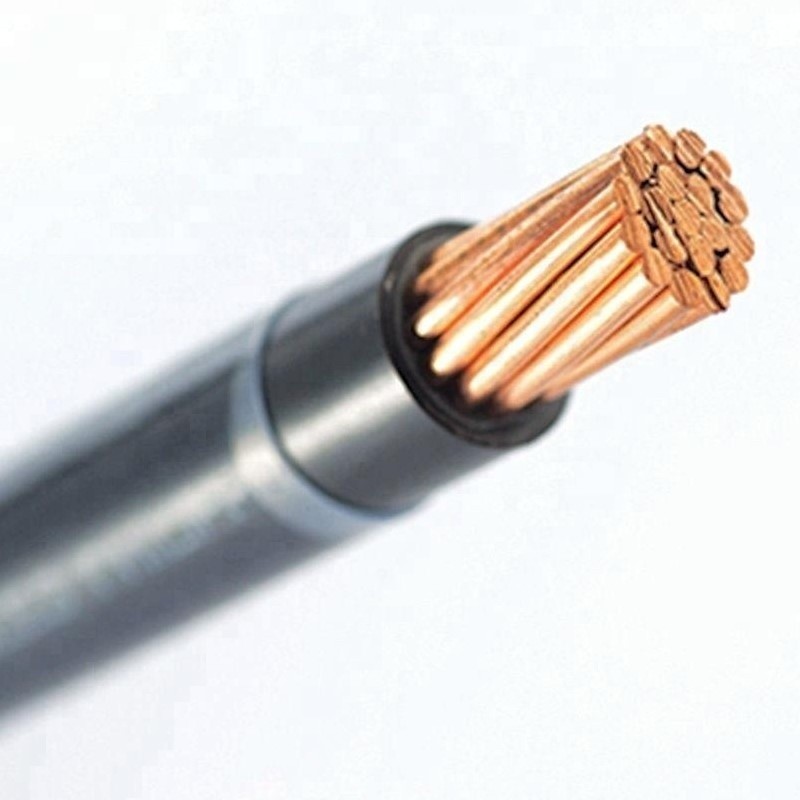

12 gauge thhn wire

12 gauge thhn wire Specification

Application:: 12 gauge thhn wire is meant for use as general purpose wiring for installation in conduit or other recognized raceway. THHN may also be used for machine tool, appliance and control circuit wiring.
Standard:: Thhn wire implement the standards GB/T5023, equivalent to IEC60 227. And it can also be made complying with ASTM, DIN, BS,UL standards etc. In addition, we can design and manufacture the products as t he requirements of customers.
Advantage:: 1. Branch and service power distribution for commercial, industrial, institutional and multi-residential buildings; 2.Made of annealed (soft) copper, compressed and stranded Insulating material is high heat and moisture resistant polyvinyl chloride (PVC).; 3.Sheath is made of wear-resistant, moisture-resistant, gasoline and oil-resistant nylon.; 4.THHN is rated for 600 volts.; 5. 12 thhn wire amp rating is 23A.

Model No.	Conductor		Insualtion		Jacket
	Wires× Number	OD(mm)	Thickness	Diameter	Thickness	Min. Dia.	Max.
			mm	mm	mm	mm	mm
30 AWG	7/0.10	0.31	1.9	0.011	/	/	/
28 AWG	7/0.127	0.38	1.95	0.01	/	/	/
26 AWG	7/0.16	0.48	2.05	0.01	/	/	/
24 AWG	11/0.16	0.61	2.2	0.009	/	/	/
22 AWG	17/0.16	0.76	2.58	0.011	/	/	8
20 AWG	26/0.16	0.94	2.7	0.01	/	/	/
18 AWG	16/0.254	1.16	2.8	0.01	/	/	/
17 AWG	42/0.18	1.34	3.08	0.009	/	/	/
16 AWG	26/0.254	1.49	3.47	0.011	/	/	/
14 AWG	41/0.254	1.87	3.94	0.01	/	/	/
12 AWG	65/0.254	2.36	0.82	0.01	/	/	/
10 AWG	66/0.32	3	0.82	0.009	/	/	/
