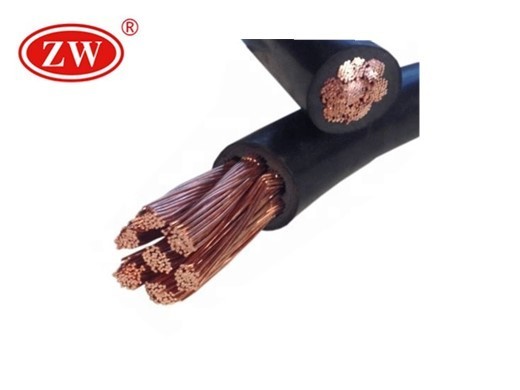

1/0 AWG Battery Cable

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Red,Black
  • Temperature Range: -20°C to +90°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard:IEC

1/0 AWG Battery Cable Specification

  • Conductor

    Plain Annealed Copper Class 5

  • PVC

  • Sheath

    PVC

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    90°C

  • Core Colours

    Red,Black

  • Sheath Colours

    Red,Black

  • Current Carrying Capacity

    For current ratings refer to IEC

The Characteristics of 1/0 AWG Battery Cable

Application:
1/0 awg battery cable is used for connecting the electrodes to the welding equipment,charger machine. These cables are suitable for welding equipment,charger machine in industry , in automated welding equipment, in tooling constructions, automobile and ship building as well as for hand-held electrodes in workshops and at building sites. These flexible and robust current carrying cables are suitable for use at high mechanical loads in dry indoors.
Standard:
Henan Central Plain Cables and Wires Co,.Ltd.
Extra Flexibility:
When high flexibility required, welding cable shall make a substitute.
Battery Cable Advantage:
High performance of resistant to abrasion, cracking and a variety of chemicals including gasoline, oils, diesel fuels, grease, and acid.
Suitable Uses:
Automotive Battery Cables Marine / Boat Battery Cables Solar Battery Bank Array Forklift Charging Cables Power Inverter Cables Welding Cable Leads Golf Cart Battery Cables Amplifier Wiring ...and many other uses

1/0 AWG Battery Cable Parameter

Conductor Size Stranding(0.25mm)225 Conductor Diameter(in.) Insulation Thickness(in.) Total Diameter(in.) Max Amp
6 AWG 253 0.20 0.06 0.32 115
4 AWG 370 0.23 0.06 0.35 150
2 AWG 634 0.30 0.06 0.42 205
1/0 1004 0.47 0.08 0.53 285
2/0 1255 0.43 0.08 0.59 325
4/0 2047 0.56 0.08 0.72 440
