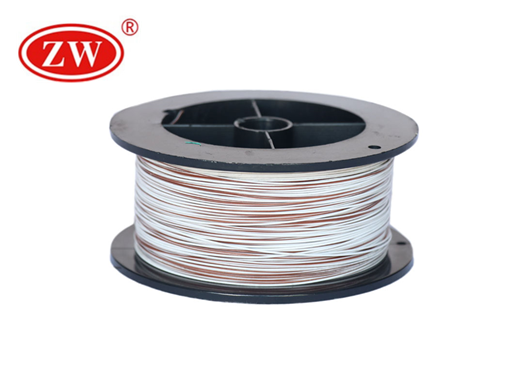

260°C PFA Insulated Thermocouple Wire

Conductor:Tinned Copper
Insulation: FEP
Insulation Color: Red - Yellow - Blue- White - Black- Yellow- Green - Brown - Orange- Purple
Temperature Range: 600V
Standard: ISO9001, UL, RoHS

PFA Insulated Thermocouple Wire Specification

Sheath

PFA
Min Operating Temperature

-30°C
Max Operating Temperature

200°C
Core Colours

Red - Yellow - Blue- White - Black- Yellow- Green - Brown - Orange- Purple

Application:: 260°C PFA Insulated Thermocouple Wire is ideal for automotive oxygen and NOx sensors, gas igniters, medical and scientific instruments, computers, aircraft, and marine systems subjected to harsh operating conditions.
Standard:: UL,RHos
Advantage:: Has excellent pfa insulatoin corrosion resistance, almost insoluble in any organic solvent, can be anti-oil, strong acid, anti-alkali, strong oxidants, etc .;; PFA Wire has excellent electrical insulation properties, high voltage, high frequency loss, no moisture absorption, insulation resistance Large; with excellent fire resistance, aging resistance, long service life.
Customer Service:: Being one of the leadingcvWire manufacturers, we always put quality in the first place. In order to guarantee the performance of PFA Wire, ZW produce the cable in strict accordance with international standards. Our PFA wire and FEP wire are very popular in the world. We promise to provide the qualified products for our customers.

Conductor			Insulation		Max.Conductor Resistance DC 20ºC Ω/km	Packing
AWG	Conductor Construction No./dia.(mm)	Diameter(mm)	Insulation Thickness(mm)	Out Diameter(mm)	Max.Conductor Resistance DC 20ºC Ω/km	m/coil
36	7/0.05	0.15	0.085	0.32	1900	305
34	7/0.064	0.19	0.075	0.34	900	305
34	19/0.04	0.2	0.07	0.34	900
32	7/0.08	0.24	0.065	0.38	588.85	305
32	19/0.05	0.25	0.1	0.38	588.85
30	7/0.1	0.3	0.1	0.5	381	305
30	19/0.06	0.3	0.12	0.5	381
28	7/0.127	0.38	0.12	0.62	239	305
26	7/0.16	0.48	0.16	0.72	150	305
24	7/0.02	0.6	0.2	0.92	94.2	305
22	7/0.254	0.76	0.2	1.16	59.4	610
20	7/0.32	0.96	0.2	1.36	36.7	610
18	19/0.235	1.18	0.2	1.58	23.2	610
16	19/0.3	1.5	0.2	1.9	14.2	610
