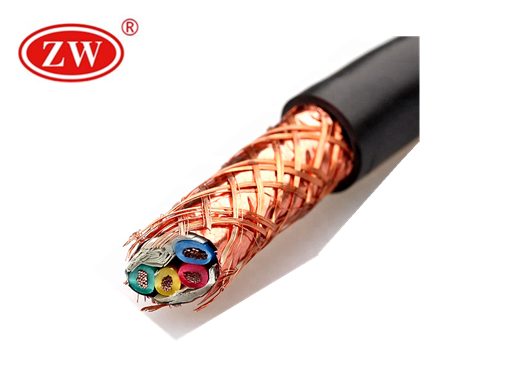

300v Rvvp Shielded Cable

Rvvp Shielded Cable Specification

Application:: Rvvp shielded Cable cab be used in dry rooms ,apparatus switch and distribution boards,for fixed installation in conduits,over and under plaster and on insulated supports over plaster,direct laying in plaster is not permitted.
Standard:: IEC,ISO9001, ROHS,SGS
300v Rvvp Shielded Cable:: Insulation: PVC; Core Color: Any color .; Shielding: Copper Wire; .Jacket : PVC
Rvvp Cable Characteristic:: Good oil resistant, abrasion resistant, chemical solventresistant, radiation resistant.; Short twist pitch, stable transmission characteristics .; Double shielding,resistance to electromagnetic interference; Bending radius allowance of the cable.
Our Service:: (1) MUTUAL BENEFIT: Our offer will be reasonable, our price will be cheaper in the same quality.; (2) CUSTOMIZE: We can make the product as your request, Specification and Quality can meet your request.; (3) OEM: (1)Printing your Logo.; (4)Designing your packing.; (5) MIX ORDER: We accept mix order, different model and small quantity order.; (6) AFTER SERVICE: 70 Years Guarantee.

Model AWG	Conductor		Insualtion		Spiral	Jacket
	Conductor Diameter	Max. Resistance at 20°C	Thickness	OD		Thickness	Min. Dia.
	(NO/mm)	MΩ/km	mm	mm		mm	mm
30	7/0.1	381	0.4	1.1	32/0.10	0.5	2.1
28	7/0.127	239	0.4	1.2	34/0.10	0.5	2.2
26	7/0.16	150	0.4	1.3	38/0.10	0.5	2.3
24	11/0.16	942	0.4	1.4	42/0.10	0.5	2.4
22	17/0.6	59.4	0.4	1.55	43/0.10	0.5	2.55
20	26/0.16	36.7	0.44	1.80	45/0.12	0.55	2.85
18	41/0.16	23.2	0.44	2.05	51/0.12	0.55	3.5
16	26/0.254	14.6	0.46	2.4	55/0.12	0.56	3.8

You can order up to pieces FREE samples. We will contact you within 24 hours afer you fulfill the form.
