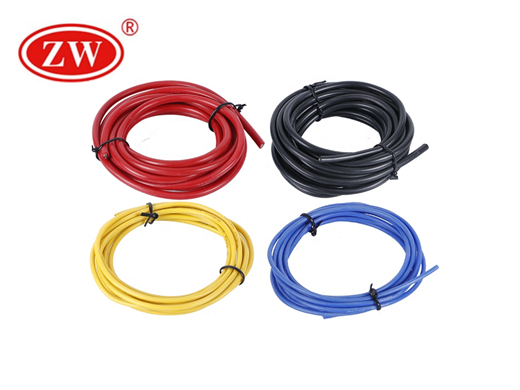

32 AWG Silicone Wire

  • Conductor:Tinned Copper
  • Insulation: Silicone
  • Insulation Color: Red - Yellow - Blue- White - Black- Yellow- Green - Brown - Orange- Purple
  • Normal volt: 600V
  • Standard: ISO9001, UL, RoHS

32 AWG Silicone Wire Specification

  • Conductor

    Tinned Copper

  • Sheath

     Silicone

  • Min Operating Temperature

    -36°C

  • Max Operating Temperature

    260°C

  • Core Colours

    Red - Yellow - Blue- White - Black- Yellow- Green - Brown - Orange- Purple

  • Current Carrying Capacity

    For current ratings refer to UL Strandard

The Characteristics of 32 AWG Silicone Wire

32 AWG Silicone Wire uses electronic industry. It can be used for temperature compensation wire, low temperature wire, high temperature heating wire, anti-aging wire and flame retardant wire; household appliances industry, can be used for air conditioners, microwave ovens, electronic disinfection cabinet, rice cookers, electronic thermos, , Electric oven, electric wok, lighting, lighting and other internal wiring.
Standard:
UL758, UL62, UL1581
Mechanical properties:
Tensile strength: ≥3.45N/mm²
Elongation at break of insulation: ≥100%
Min.Bending radius: 6×OD
Advantage:
Silicone cables have very good flexibility and good performance of resistance to high temperature, range from -55ºC up to 180ºC. The use of silicone rubber, a high grade corona resistant insulation material, gives the cable excellent dielectric strength. The braided synthetic yarn covering, which is applied directly over the insulation, gives the cable, because of its short braiding pitch and high compactness, an excellent mechnical protection by maintaining good flexibility. The varnishing of the braiding results in good antifriction properties, high abrasion resistance and excellent chemical resistance against transformer oil, light fuel oil and most types of cleaning agents. In the event of fire, no corrosive and toxic gases will be given off. Hence, damage caused by fire can be kept to minimum.
Customer Service on Silicone Cable:
Being one of the leading Silicone Wire Suppliers, we always put quality in the first place. In order to guarantee the performance of 32 AWG Silicone Cable, ZW produce the cable in strict accordance with international standards. Our silicone cable is very popular in the world. We promise to provide the qualified products for our customers. If you to know more information about Silicone Wire price, just leave your message.

32 AWG Silicone Wire Parameter

AWG Conductor Insulation thickness Braiding thickness Cable OD Resistance
size Structure OD Norminal OD   Norminal Tolerance Ω/KM
NO. mm² No./mm mm mm mm mm mm mm Max.
16 1.31 7/0.49 1.55 1.28 4.11 0.2 4.5 ±0.20 14.6
26/0.254
52/0.18
15 1.65 33/0.254 1.75 1.28 4.31 0.2 4.7 ±0.20 11.3
14 2.08 41/0.254 1.95 1.28 4.51 0.2 4.9 ±0.20 8.96
7/0.62
37/0.26
13 2.63 52/0.254 2.15 1.28 4.71 0.2 5.1 ±0.20 7.1
12 3.31 65/0.254 2.5 1.28 5.06 0.2 5.5 0.3 5.64
  43/0.32 -0.2
11 4.17 83/0.254 2.74 1.28 5.3 0.2 5.7 0.3 4.48
34/0.40 -0.2
10 5.261 35/0.45 3.2 1.28 5.76 0.2 6.2 0.1 3.55
9 6.631 53/0.40 3.98 1.28 6.54 0.2 7 0.1 2.81
8 8.367 70/0.40 4.4 1.28 6.96 0.2 7.4 0.1 2.3
7 10.55 84/0.40 4.6 1.28 7.16 0.25 7.7 0.1 1.79
6 13.3 105/0.40 5.3 1.28 7.86 0.25 8.4 0.1 1.42
5 16.77 133/0.40 6 1.28 8.56 0.25 9.1 0.1 1.12
4 21.15 168/0.40 6.8 1.28 9.36 0.3 10 0.1 0.89
3 26.67 210/0.40 7.6 1.28 10.16 0.3 10.8 0.2 0.707
2 33.62 266/0.40 8.5 1.28 11.06 0.3 11.7 0.2 0.56
1 42.41 217/0.50 9.6 1.28 12.16 0.55 13.3 0.2 0.449
1/0 53.49 276/0.50 11.2 1.53 14.26 0.55 15.4 0.2 0.355
2/0 67.43 342/0.50 12.2 1.53 15.26 0.55 16.4 0.2 0.282
3/0 85.01 437/0.50 13.8 1.53 16.86 0.55 18 0.2 0.223
4/0 107.2 551/0.50 15.5 1.53 18.56 0.65 19.9 0.2 0.177
250kcmil 127 646/0.50 17.5 1.53 20.56 0.65 21.9 0.5 0.151
300kcmil 152 779/0.50 19.5 2.24 22.56 0.65 23.9 0.5 0.125
350kcmil 177 912/0.50 21 2.24 24.06 0.65 25.4 0.5 0.108
400kcmil 203 1036/0.50 23 2.24 26.06 0.65 27.4 0.5 0.0942
