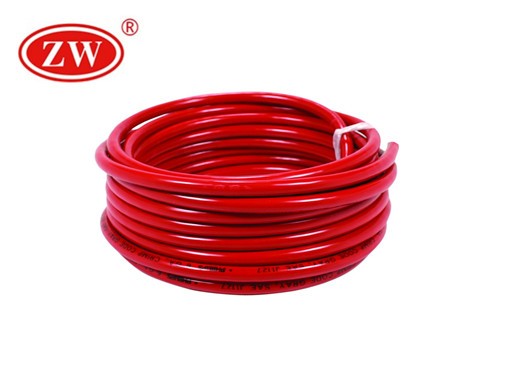

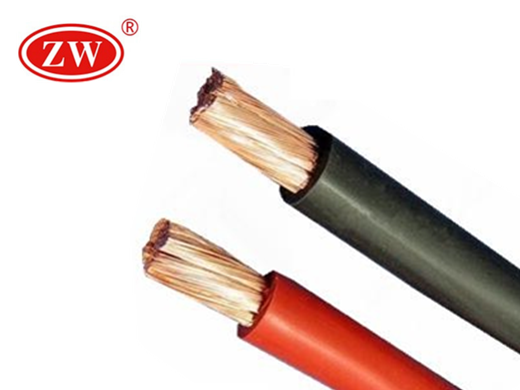

35mm Battery Cable

35mm Battery Cable Specification

Application:: 35mm Battery cable is typically rated 600 volts but can also be rated 100 volts. The cable is known for its flexibility and durability, and many automatic and manual welding applications require the cable to hold up to repeated movement over rough surfaces.
Standard:
Technical properties:: Rate voltage: 450/750V Working temperaure: -35℃-+85℃ Sheath color: Black or red .
Battery Cable Feature:: Resistant to cuts, tears and abrasion in addition to moisture. Welding Wire offers good color retention along with great flexibility.

Nominal section(mm2)	No./dia. of core(mm)	Average dia.(mm)	Reference weight(kg/km)	Conductor resistance at 20℃(Ω/km)
10	322/0.20	9.7	151.6	1.91
16	513/0.20	11.5	224.0	1.61
25	798/0.20	13.0	326.0	0.758
35	1121/0.20	14.5	430.0	0.536
50	1596/0.20	17.0	600.0	0.379
70	2214/0.20	19.5	0.268	818.1
95	2997/0.20	22.0	1082	0.198

You can order up to pieces FREE samples. We will contact you within 24 hours afer you fulfill the form.
