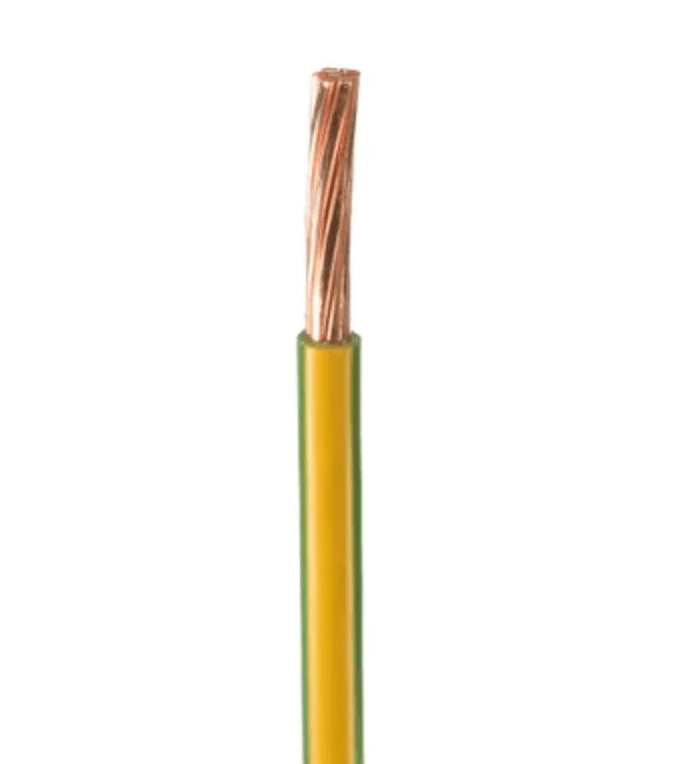

35mm earth cable

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Yellow-Green
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard: IEC

35mm Earth Cable Specification

  • Conductor

    Plain Annealed Copper Class 5 to BS EN 60228

  • Insulation

    PVC Type

  • Sheath

    PVC Type

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    70°C

  • Core Colours

    Yellow-Green

  • Sheath Colours

    Yellow-Green

  • Current Carrying Capacity

    For current ratings refer to table 4F3 of BS7671 IEC

The Characteristics of 35mm Earth Cable

Application:
35mm Earth Cable is suitable for laying at the fixed places. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc. with AC rated voltage up to and including 450/750V(U0/U).Earth is the reference point in an electrical circuit from which voltages are measured, a common return path for electric current, or a direct physical connection to the earth.
Standard:
The product implement the standards GB/T5023, equivalent to IEC60 227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as t he requirements of customers.
Brief construction:
1) Conductor: Copper or aluminium, Solid
2) Insulation: PVC
3) Number of cores: Single core
4) Other special characteristics: Design and manufacture according t o the requirements of customers.
Service performance:
1) Long-term working temperature: not be higher than 70°C
2) When laying the cable, the ambient temperature should not lower than 0°C

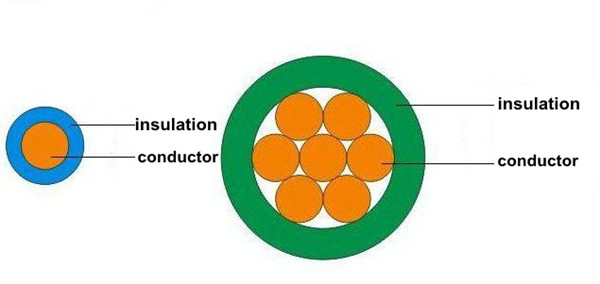

Structure diagram:
Single Core 70mm Earth Cable

35mm Earth Cable Parameter

Nominal section(mm2) No./dia. of core(mm) Average dia.(mm) Reference weight(kg/km) Conductor resistance at 20℃(Ω/km)
1.5 30/0.25 3.5 20.6 12.1
2.5 50/0.25 4.2 33 7.41
4.0 46/0.30 4.8 48 4.61
6.0 84/0.30 5.6 68 3.08
10.0 80/0.40 7.6 115 1.83
16.0 128/0.40 8.8 176 1.15
25.0 200/0.40 9.5 272

0..727

35 280/0.40 11 400 0.524
50 400/0.40 13.5 582 0.387
70 356/0.40 15 777 0.268
95 485/0.50 16.7 1027 0.193
120 614/0.50 18.5 1287 0.153
150 765/0.50 20.6 1626 0.124
185 944/0.50 22.8 1972 12.1
