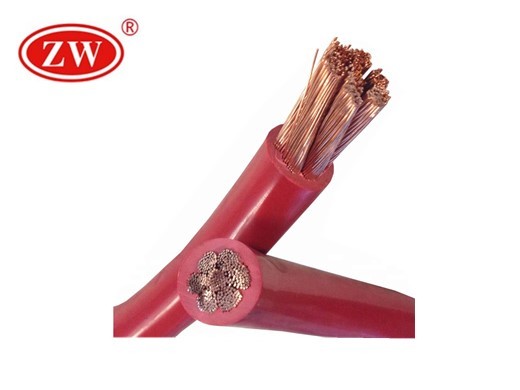

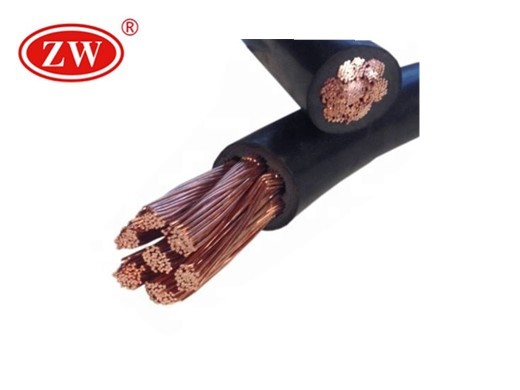

3/0 AWG Battery Cable

3/0 AWG Battery Cable Specification

Application:: 3/0 AWG Battery cables are used for connecting the electrodes to the welding equipment,charger machine. These cables are suitable for welding equipment,charger machine in industry , in automated welding equipment, in tooling constructions, automobile and ship building as well as for hand-held electrodes in workshops and at building sites. These flexible and robust current carrying cables are suitable for use at high mechanical loads in dry indoors.
Standard:
Extra Flexibility:: When high flexibility required, welding cable shall make a substitute.
Battery Cable Advantage:: High performance of resistant to abrasion, cracking and a variety of chemicals including gasoline, oils, diesel fuels, grease, and acid.
Suitable Uses:: Automotive Battery Cables Marine / Boat Battery Cables Solar Battery Bank Array Forklift Charging Cables Power Inverter Cables Welding Cable Leads Golf Cart Battery Cables Amplifier Wiring ...and many other uses

Conductor Size	Stranding(0.25mm)225	Conductor Diameter(in.)	Insulation Thickness(in.)	Total Diameter(in.)	Max Amp
6 AWG	253	0.20	0.06	0.32	115
4 AWG	370	0.23	0.06	0.35	150
2 AWG	634	0.30	0.06	0.42	205
1/0	1004	0.47	0.08	0.53	285
2/0	1255	0.43	0.08	0.59	325
4/0	2047	0.56	0.08	0.72	440
