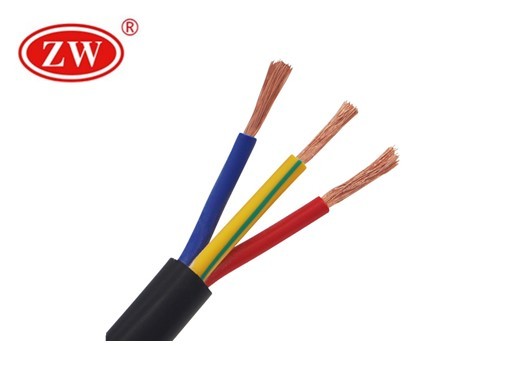

3 Cores Round Black Flexible Cable

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Brown, Red, Yellow-Green
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard: IEC
Get A Quote For Free

Black Flexible Cable Specification

  • Conductor

    Plain Annealed Copper Class 5

  • Insulation

    PVC Type

  • Sheath

    PVC Type

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    70°C

  • Core Colours

    Red, Blue Yellow-Green

  • Sheath Colours

    Black

  • Current Carrying Capacity

    For current ratings refer to IEC

The Characteristics of 3 Cores Round Black Flexible Cable

Application:
3 Cores Flexible Cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.
Standard:
The product implement the standards GB/T5023, equivalent to IEC60 227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as t he requirements of customers.
Structure:
1.Balck Flexible Cable is suitable to be installed in electrical power transmission and disteribution lines rated voltage 450/750V.
2.conductor's rated working temperature:≤70
3.Short-circuit temperature160/5sec
4.Cable laying environment≥0
5.Cable laying, bend radius≥10 times cable O.D.
Cable Diameter:
0.05-50mm2
Working conditions:
1.This maximum working temperature of the conductor is 70C.
2 .During having a short (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 160oC.
3. Environment temperature should be no lower than 0oC for laying the cable.
4. Bending radius allowance of the cable.
Our Service:
(1) MUTUAL BENEFIT: Our offer will be reasonable, our price will be cheaper in the same quality.
(2) CUSTOMIZE: We can make the product as your request, Specification and Quality can meet your request.
(3) OEM: (1)Printing your Logo.
(4)Designing your packing.
(5) MIX ORDER: We accept mix order, different model and small quantity order.
(6) AFTER SERVICE: 70 Years Guarantee.

Black Flexible Cable Parameter

Model No. Conductor Insualtion Jacket
Conductor Diameter Max. Resistance at 20°C Thickness Min. Resistance at 70°C Thickness Min. Dia. Max.
(NO/mm) MΩ/km mm MΩ/km mm mm mm
2×0.75 24×0.20 26 0.6 0.011 0.8 6 7.6
2×1.0 32×0.20 19.5 0.6 0.01 0.8 6.4 8
2×1.5 30×0.25 13.3 0.7 0.01 0.8 7.4 9
2×2.5 49×0.25 7.98 0.8 0.009 1 8.9 11
3×0.75 24×0.20 26 0.6 0.011 0.8 6.4 8
3×1.0 32×0.20 19.5 0.6 0.01 0.8 6.8 8.4
3×1.5 30×0.25 13.3 0.7 0.01 0.9 8 9.8
3×2.5 49×0.25 7.98 0.8 0.009 1 9.6 12
4×0.75 24×0.20 26 0.6 0.011 0.8 6.8 8.6
4×1.0 32×0.20 19.5 0.6 0.01 0.9 7.6 9.4
4×1.5 30×0.25 13.3 0.7 0.01 1 9 11
4×2.5 49×0.25 7.98 0.8 0.009 1.1 10.5 13
5×0.75 24×0.20 26 0.6 0.011 0.9 7.4 9.6
5×1.0 32×0.20 19.5 0.6 0.01 0.9 8.3 10
5×1.5 30×0.25 13.3 0.7 0.01 1.1 10 12
5×2.5 49×0.25 7.98 0.8 0.009 1.2 11.5 14
