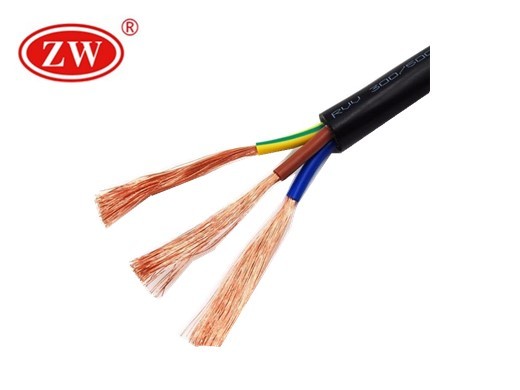

3 Cores Rvv Cable

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Brown, Blue, Yellow-Green
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard: IEC

RVV Cable Specification

  • Conductor

    Plain Annealed Copper Class 5

  • Insulation

    PVC Type

  • Sheath

    PVC Type

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    70°C

  • Core Colours

    Brown, Blue Yellow-Green

  • Sheath Colours

    Black,White

  • Current Carrying Capacity

    For current ratings refer to IEC

The Characteristics of Rvv Cable

Application:
RVV Cable is working as connecting and control cable under dry or wet indoor situation, especially for kinds of electronic installation of industrial condition. RVV cable cross section area 0.5mm2 or upper could work as control and connecting cable in machine tool manufacture, whole set equipment installation, power station, belching and air condition installation. As below is rvv cable specification.
Standard:
The product implement the standards GB/T5023, equivalent to IEC60 227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as t he requirements of customers.
Structure:
1.Suitable to be installed in electrical power transmission and distribution lines rated voltage 450/750V.
2.conductor's rated working temperature:≤70
3.Short-circuit temperature160/5sec
4.Cable laying environment≥0
5.Cable laying, bend radius≥10 times cable O.D.
RVV Cable Diameter:
0.05-50mm2
Working conditions:
1.This maximum working temperature of the conductor is 70C.
2 .During having a short (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 160oC.
3. Environment temperature should be no lower than 0oC for laying the cable.
4. Bending radius allowance of the cable.


RVV Cable Datasheet

Model No. Conductor Insualtion Jacket
Cores × Nom. Area Max. Resistance at 20°C Thickness Min. Resistance at 70°C Thickness Min. Dia. Max.
mm² MΩ/km mm MΩ/km mm mm mm
RVV2×0.75 2×0.75 26 0.6 0.011 0.8 6 7.6
RVV2×1.0 2×1.0 19.5 0.6 0.01 0.8 6.4 8
RVV2×1.5 2×1.5 13.3 0.7 0.01 0.8 7.4 9
RVV2×2.5 2×2.5 7.98 0.8 0.009 1 8.9 11
RVV3×0.75 3×0.75 26 0.6 0.011 0.8 6.4 8
RVV3×1.0 3×1.0 19.5 0.6 0.01 0.8 6.8 8.4
RVV3×1.5 3×1.5 13.3 0.7 0.01 0.9 8 9.8
RVV3×2.5 3×2.5 7.98 0.8 0.009 1 9.6 12
RVV4×0.75 4×0.75 26 0.6 0.011 0.8 6.8 8.6
RVV4×1.0 4×1.0 19.5 0.6 0.01 0.9 7.6 9.4
RVV4×1.5 4×1.5 13.3 0.7 0.01 1 9 11
RVV4×2.5 4×2.5 7.98 0.8 0.009 1.1 10.5 13
RVV5×0.75 5×0.75 26 0.6 0.011 0.9 7.4 9.6
RVV5×1.0 5×1.0 19.5 0.6 0.01 0.9 8.3 10
RVV5×1.5 5×1.5 13.3 0.7 0.01 1.1 10 12
RVV5×2.5 5×2.5 7.98 0.8 0.009 1.2 11.5 14
