Home > Products > Welding Cable 105°C 600V

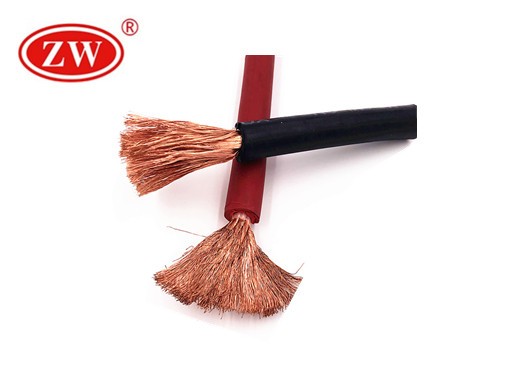

4 AWG Welding Cable

  • Conductor: Copper
  • Insulation: Rubber
  • Insulation Color: Red,Black
  • Temperature Range: -30°C to +90°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard:IEC, GB,UL
Get A Quote For Free

4 AWG Welding Cable Specification

  • Conductor

    Plain Annealed Copper Class 5 to BS EN 60228

  • Insulation

    Rubber

  • Sheath

    Rubber

  • Min Operating Temperature

    -30°C

  • Max Operating Temperature

    90°C

  • Core Colours

    Red,Black

  • Sheath Colours

    Red,Black

  • Current Carrying Capacity

    For current ratings refer to IEC

The Characteristics of 4 AWG Welding Cable

Application:

4 AWG Welding cable is also known as 4 gauge welding cable and 4 gauge weliding wire. These cables can be used as entertainment or stage lighting cables for movie theatres, lighting and sound systems, and communication vans. Other possible uses for welding cable include battery cables for cars, inverter cables, and as a cheaper alternative to pendant/reeling cable on hoists and cranes. For example, many solar power installations use welding cable extensively to connect solar panels, battery banks, and converters.
Standard:
4 AWG Welding Cable
Extra Flexibility:
When high flexibility required, welding cable shall make a substitute.
Feature:
Resistant to cuts, tears and abrasion in addition to moisture. 4 awg Welding Wire offers good color retention along with great flexibility.
Suitable Uses:
4 AWG Welding Cable is used for connection from electrode holder and clamp to arc welder, bus, welding box or transformer. May also be used in automotive applications where high flexibility and superior abrasion and chemical resistance is required.
FAQ
How many amps are the 4 AWG welding cable related?
We recommeded current is 105A.
Is it pure copper or copper clad aluminum?
We only produce 100% pure copper.
What's your Mininym Order Quantity?
We have cable in stock. So we accept small order quantity. The cable is heavy. We suggest you
order more meters to avoid the high fretight. Sea freight is best option.
What's 4 gauge welding cablle in mm2?
It is 25mm welding cable.
How can I get sample to test quality?
The samples are free for you.
Doese your company accept OME?
Yes, we could print your company name and logo. We can make quality card and promote to your company.


4 AWG Welding Cable Parameter

Conductor Size Stranding(0.25mm)225 Conductor Diameter(in.) Insulation Thickness(in.) Total Diameter(in.) Max Amp
6 AWG 253 0.20 0.06 0.32 115
4 AWG 370 0.23 0.06 0.35 150
2 AWG 634 0.30 0.06 0.42 205
1/0 1004 0.47 0.08 0.53 285
2/0 1255 0.43 0.08 0.59 325
4/0 2047 0.56 0.08 0.72 440
