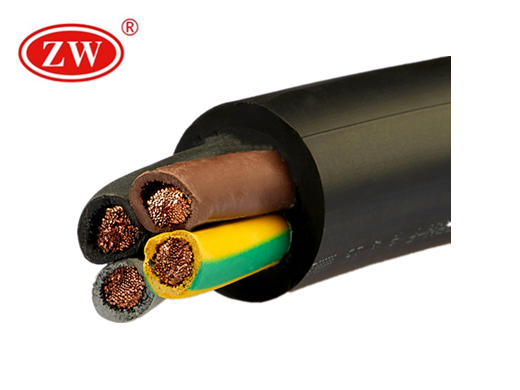

4 Cores Submersible Pump Cable

  • Conductor: Copper
  • Insulation: Rubber
  • Insulation Color: Red,Black
  • Temperature Range: -30°C to +90°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard:IEC, GB,UL

Submersible Pump Cable Specification

  • Conductor

    Plain Annealed Copper Class 5 to BS EN 60228

  • Insulation


  • Sheath


  • Min Operating Temperature


  • Max Operating Temperature


  • Core Colours


  • Sheath Colours


  • Current Carrying Capacity

    For current ratings refer to IEC

The Characteristics of 4 Cores Submersible Pump Cable

4 Cores Submersible cable is designed for use in wet ground or under water, with types specialized for pump enviromental conditions. This product has excellent waterproof performance.

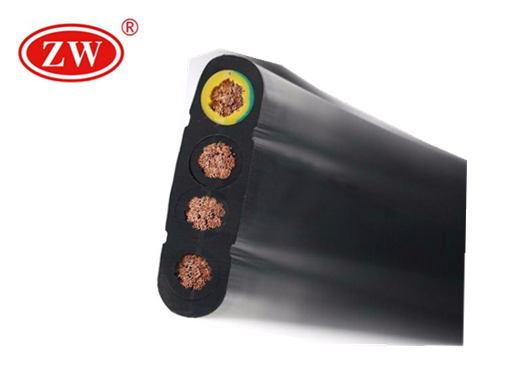

4 Cores Submersible Pump Cable
Extra Flexibility:
When high flexibility required, welding cable shall make a substitute.
Resistant to cuts, tears and abrasion in addition to moisture. Welding Wire offers good color retention along with great flexibility.
Suitable Uses:
Submersible Pump Cable is used for connection from electrode holder and clamp to arc welder, bus, welding box or transformer.
These pump cables are ruggedly constructed, insulated and sheathed to withstand water and flexible motor connections as it may move, rub and abrade the surrounding environment.EPR (ethylene propylene rubber) and other elastomeric compounds are often used in construction, but certain special PVC compounds are also used. It should be noted that standard PVC is not suitable as it is a permeable material that will eventually penetrate water and affect conductors.

Submersible Pump Cable Parameter

Conductor Size Max Diameter of Wire(0.21mm) Coated Layer Thinckness (mm) Sheath Thickness(mm) Total Diameter(mm) Max. resistance at 20℃ (Ω/km)
16 0.21 2.0 1.3 10.3 1.16
25 0.21 2.0 1.3 11.5 0.785
35 0.21 2.0 1.3 13 0.536
50 0.21 2.0 1.5 15 0.379
70 0.21 2.5 1.6 17 0.268
95 0.21 2.5 1.7 19.5 0/198
