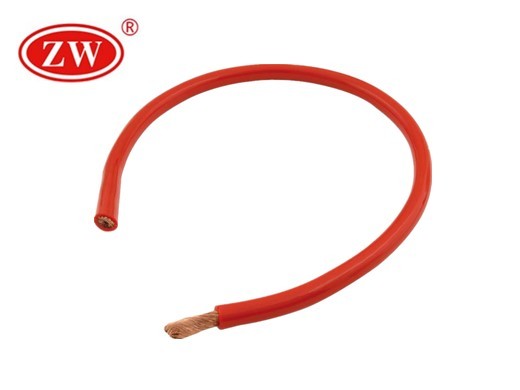

4 Gauge Battery Cable

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Red,Black
  • Temperature Range: -20°C to +90°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard:IEC
Get A Quote For Free

4 Gauge Battery Cable Specification

  • Conductor

    Plain Annealed Copper Class 5 to BS EN 60228

  • Insulation

    PVC

  • Sheath

    PVC

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    90°C

  • Core Colours

    Red,Black

  • Sheath Colours

    Red,Black

  • Current Carrying Capacity

    For current ratings refer to IEC

The Characteristics of 4 Gauge Battery Cable

Application:
4 gauage battery cable is specifically designed to meet the requirements of a variety of environments, while remaining extremely flexible. The full AWG size copper conductors are made from 99.9% pure annealed electrolytic copper and will yield maximum power. The jacket is resistant to chemicals, water, abrasion, oil and sunlight, and has a colour coded double extruded jacket with white internal insulation that will show any damage to the external cable more clearly. 4 gauage battery wire is rated up to 600 volts and is suitable for automotive applications, solar array wiring, inverter power battery cables, marine battery cables and many other applications that require a durable yet flexible battery cable. The battery cables meet the requirements of SAE J1127 and J378, making them suitable for marine and offshore use as well.
Standard:
4 Gauge Battery Cable
Extra Flexibility:
When high flexibility required, welding cable shall make a substitute.
Battery Cable Advantage:
High performance of resistant to abrasion, cracking and a variety of chemicals including gasoline, oils, diesel fuels, grease, and acid.
Suitable Uses:
Automotive Battery Cables Marine / Boat Battery Cables Solar Battery Bank Array Forklift Charging Cables Power Inverter Cables Welding Cable Leads Golf Cart Battery Cables Amplifier Wiring ...and many other uses。
FAQ:
What is diameter of 4 gauge battery cable?
The diameter of 4 gauge battery cable is 10.0mm
How many amps will 4 gauge battery cable carry?
Our 4 awg battery cable is 160A.
Do you sell 4 gauge battery cable by meter?
Yes, we have 4 gauge battery cable in stock.


4 Gauge Battery Cable Parameter

Conductor Size Stranding(0.25mm)225 Conductor Diameter(in.) Insulation Thickness(in.) Total Diameter(in.) Max Amp
6 AWG 253 0.20 0.06 0.32 115
4 AWG 370 0.23 0.06 0.35 150
2 AWG 634 0.30 0.06 0.42 205
1/0 1004 0.47 0.08 0.53 285
2/0 1255 0.43 0.08 0.59 325
4/0 2047 0.56 0.08 0.72 440
