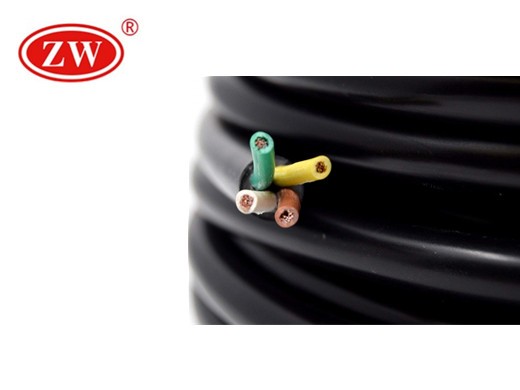

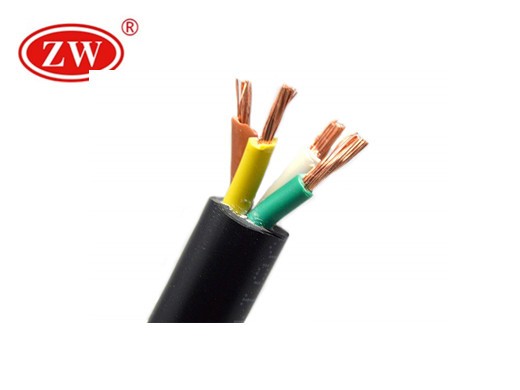

4 Way Trailer Wire

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Green, Yellow, Brown, and White
  • Temperature Range: -20°C to +120°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard:IEC

4 way Trailer Wire Specification

  • Conductor

    Plain Annealed Copper Class 5 to BS EN 60228

  • Insulation

    PVC

  • Sheath

    PVC

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    120°C

  • Core Colours

    Green, Yellow, Brown, and White

  • Sheath Colours

    Black

  • Current Carrying Capacity

    IEC,SAE J1128

The Characteristics of 4 Way Trailer Wire

Application:
4 way Trailer wires covered in a high quality, PVC jacket. Especially designed for reliability as an integral part of the brake and safety system. Heavy-duty compact cable protects insulated conductors against weathering, chemicals, and abrasion. Color-coded conductors enable easy identification.
Standard:
ICE,SAE J1128
Trailer Wire Detail:
Shape: Round Production process: Injection Features: Waterproof Contacts material: copper Insulator Material: Engineering Plastics Model: 12N (applies to European car).
Trailer Wire Advantage:
High performance of resistant to abrasion, cracking and a variety of chemicals including gasoline, oils, diesel fuels, grease, and acid.
Standard Color Code:
4 Conductor: White, Yellow, Green, Brown
6 Conductor: Red, Yellow, Black, White, Green, Brown
7 Conductor: Red, Yellow, Black, White, Green, Brown, Blue

4 Way Trailer Wire FAQ:

How do you wire a 4 wire trailer to a 5 wire?

We can prodvide you 4 wire trailer wiring diagram. Or I can tell step by step.

1.Go to a trailer supply store and select a wire adapter that connects between your two connectors.

2.Push the 4-wire side of the adapter into the vehicle's wiring.

3.Push  the 5-wire side of the adapter into the trailer's wiring harness.

Do you have sell 4 way trailer wire by meter?

Yes, we have 4 way trailer wire in stock. So we can sell 4 wire trailer by meter.
