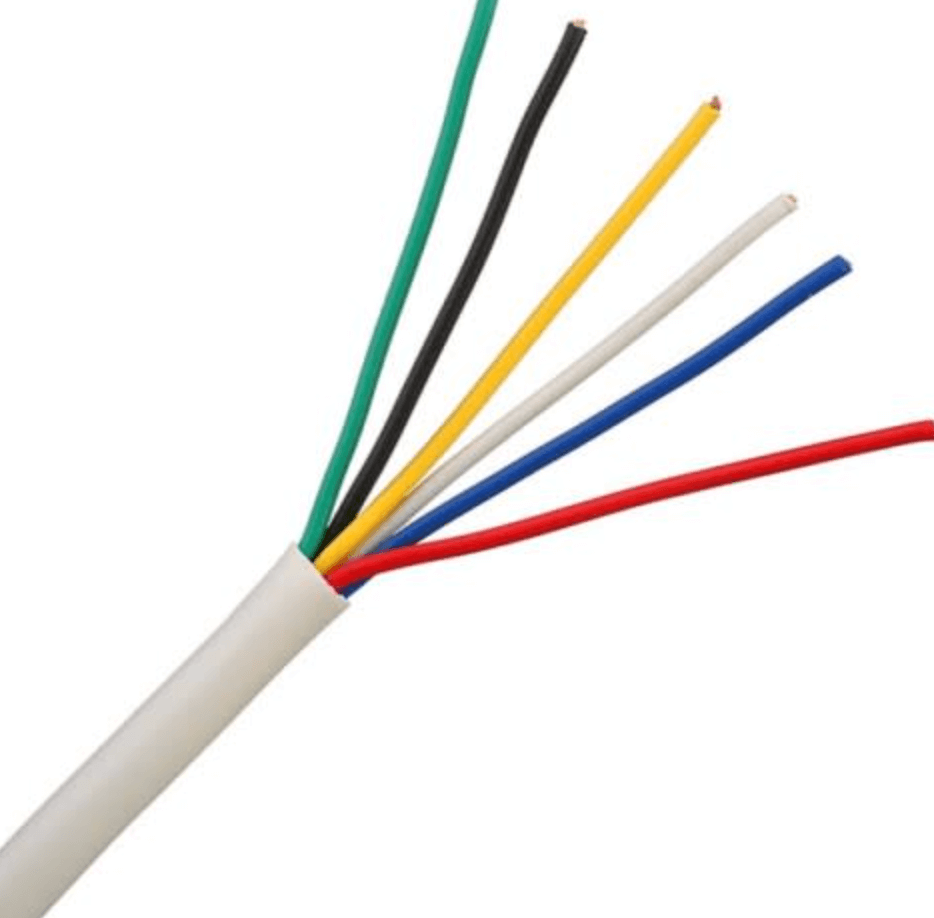

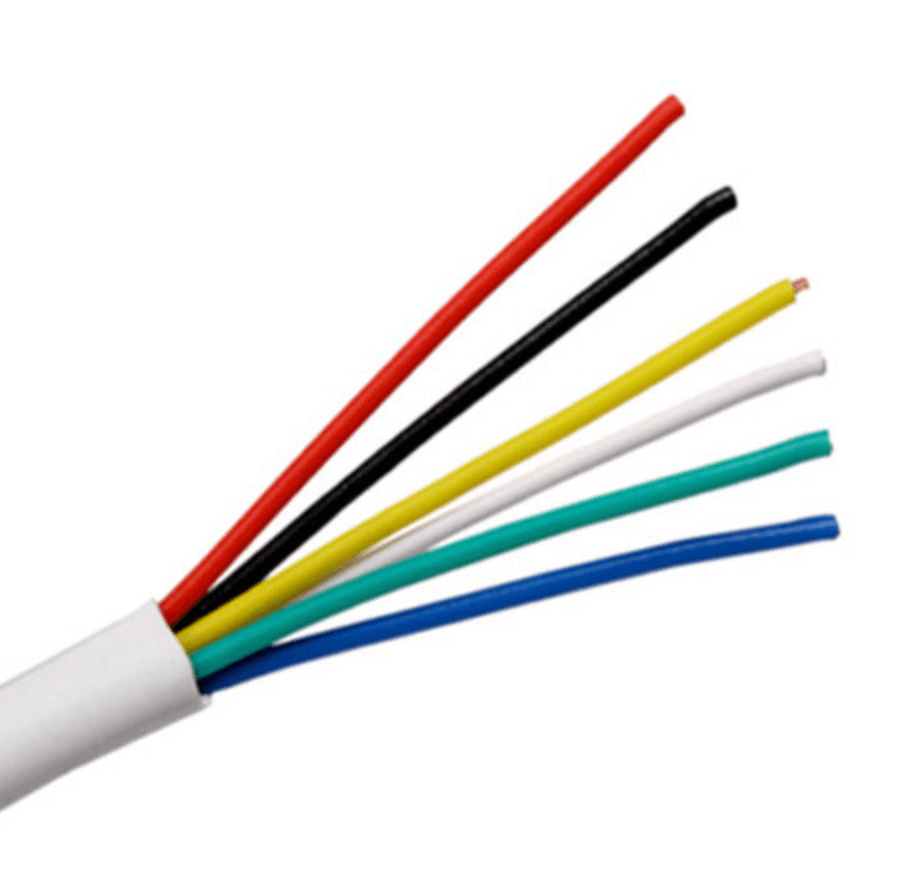

6 core cable

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Red-Yellow-Green-Blue-White-Brown
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 450/750V
  • Test Voltage:1.0KV
  • Standard: IEC

6 core cable Specification

  • Conductor

    Plain Annealed Copper Class 2

  • Insulation

    PVC Type TI4 to BS EN 50363-3

  • Sheath

     PVC Type 10 to BS 7655-4.2

  • Min Operating Temperature


  • Max Operating Temperature


  • Core Colours

    6 Core

  • Sheath Colours

    Black, White, Grey

  • Current Carrying Capacity

    For current ratings refer to IEC Strandard

The Characteristics of 6 core cable

6 core cable is applicable to cables and wires with rated voltage 450/750V and AC voltage 450/750V or less. Factory, household appliances, insurance, communication equipment. We have 6 core electrical cable and 6 core flexible cable for your choose.
The product implement the standards GB/T5023, equivalent to IEC60 227. And it can also be made complying with ASTM, DIN, BS standards etc.
1. The highest allowed operating temperature of conductor for long-term working is 90 degrees.
2. In short circuit (Max long term is no more than 5 seconds),the highest temperature for conductor is no more than 250 degrees.
3. The cable is laid without horizontal drop limit. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.
4. Excellent electrical performance, resistance to chemical corrosion.
5. They can stand advisable traction when laid.They can stand traction from Outside.Left low smoke halogen-free after burned.Retard the burning of the cable.
6.  Can be used 70 years
Customer Service:
Being one of the leading Cable manufacturers, we always put quality in the first place. In order to guarantee the performance of 6 Core Cable, ZW produce the cable in strict accordance with international standards. Our 6mm electrical cable is very popular in the world. We promise to provide the qualified products for our customers.

6 core cable types

Item Type Description
1 60227 IEC 01(BV) Single core rigid conductor unsheathed cable
for general purposes(H07V-U or H07V-R)
2 60227 IEC 02(RV) Single core flexible conductor unsheathed cable
for general purposes(H07V-K)
3 60227 IEC 05(BV) Single core 70ºC solid conductor unsheathed cable
for internal wiring(H05V-U or H05V-R)
4 60227 IEC 06(RV) Single core 70ºC flexible conductor unsheathed cable
for internal wiring(H05V-K)
5 60227 IEC 07(BV-90) Single core 90ºC solid conductor unsheathed cable
for internal wiring(H07V-U or H07V-R)
6 60227 IEC 08(RV-90) Single core 90ºC flexible conductor unsheathed cable
for internal wiring(H07V-K)
7 60227 IEC 10(BVV) Light PVC sheathed cable(NYY or NYM)
8 60227 IEC 42(RVB) Flat unsheathed flexible wire
9 60227 IEC 52(RVV) Light PVC sheathed flexible wire
10 60227 IEC 53(RVV) Common PVC sheathed flexible wire
11 BV Copper conductor PVC insulated wire(H07V-U or H07V-R)
12 BLV Aluminum conductor PVC insulated wire
13 BVR Copper conductor PVC insulated flexible cable(H07V-R)
14 BVV Copper conductor PVC insulated sheathed
circular cable(NYY or NYM)
15 BLVV Aluminum conductor PVC insulated and sheathed round cable
16 BVVB Copper conductor PVC insulated and sheathed flat cable
17 BLVVB Aluminum conductor PVC insulated sheathed flat cable
18 NMD Copper conductor PVC/Nylon Insulated PVC Jacked flat cable
19 RVS Twisted copper conductor PVC insulated flexible cable for conection
20 AVP Copper conductor PVC insulated wire with shied for installation
21 RVP Copper conductor PVC insulated flexible wire with shield
22 RVVP Copper conductor PVC insulated, shielded,
PVC sheathed flexible cable
