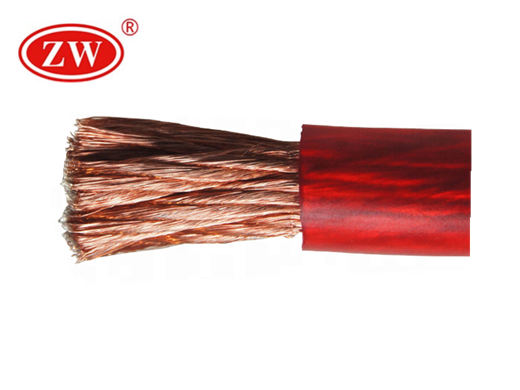

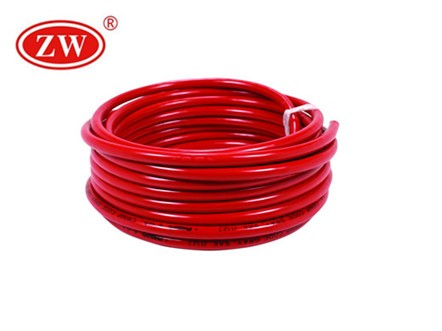

95mm Battery Cable

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Red
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard:IEC

95mm Battery Cable Specification

  • Conductor

    Plain Annealed Copper Class 5 to BS EN 60228

  • Insulation

    PVC

  • Sheath

    PVC

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    70°C

  • Core Colours

    Red

  • Sheath Colours

    Red

  • Current Carrying Capacity

    For current ratings refer to IEC

The Characteristics of 95mm Battery Cable

Application:
95mm Battery Cable is typically rated 600 volts but can also be rated 100 volts. The cable is known for its flexibility and durability, and many automatic and manual welding applications require the cable to hold up to repeated movement over rough surfaces.
Standard:
95mm Battery Cable
Feature::
• Durability
• Tear resistance
• Abrasion resistance
• Melt resistance
• Resistant to oil, water and chemicals
• Impact resistance
Customer Service:
Being one of the leading Battery Cable manufacturers, we always put quality in the first place. In order to guarantee the performance of 95mm Battery Cable, ZW produce the cable in strict accordance with international standards. Our Battery Cable is very popular in the world. We promise to provide the qualified products for our customers.

95mm Battery Cable Parameter

Nominal section(mm2) No./dia. of core(mm) Average dia.(mm) Reference weight(kg/km) Conductor resistance at 20℃(Ω/km)
10 322/0.20 9.7 151.6 1.91
16 513/0.20 11.5 224.0 1.61
25 798/0.20 13.0 326.0 0.758
35 1121/0.20 14.5 430.0 0.536
50 1596/0.20 17.0 600.0 0.379
70 2214/0.20 19.5 0.268 818.1
95 2997/0.20 22.0 1082 0.198
