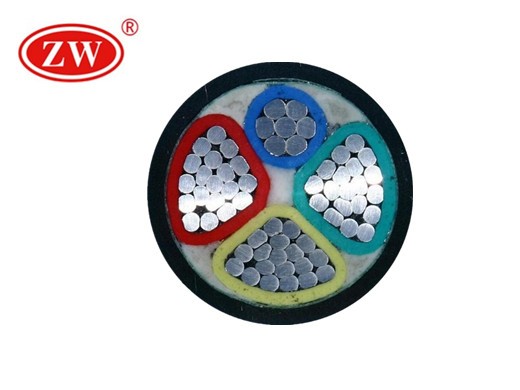

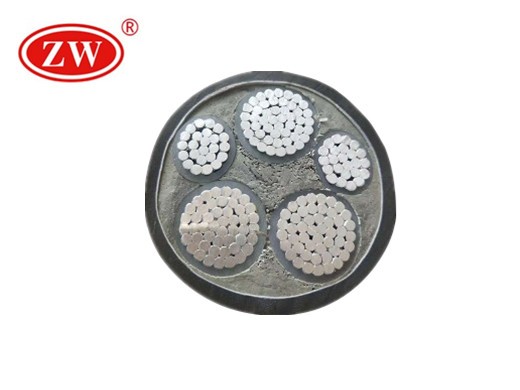

Aluminum Electrical Cable

aluminum electrical cable Specification

Application:: Aluminum electrical cable is suitable for power transmission and distribution lines with rated power frequency voltage up to and including 0.6/1KV.
Standard:
Advantage:: Excellent electric and mechanical characteristics Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant Simple in structure,Convenient to use Reduce costs.
Product Features:: 1) No necessary to heat up in advance while installing above 0oC.; 2) Max. continuous normal operating Temperature: 90oC; 3) Max. Permissible temperature at short circuit (5s. at longest): 250oC.

Normal cross-sectional area of conductor (mm2)	Normal thickness of insulation (mm)	Normal thickness of sheath (mm)	Approx. Overall diameter (mm)	Approx. weight kg/km
				VV	VY	VLV	VLY
4*4	1	1.8	14	327	294	226	193
4*6	1	1.8	16	421	385	270	233
4*10	1	1.8	19	637	592	382	337
4*16	1	1.8	21	909	858	504	453
4*25	1.2	1.8	24	1334	1273	701	640
4*35	1.2	1.8	27	1749	1681	871	804
4*50	1.4	1.9	29	2255	2179	1067	991
4*70	1.4	2.1	33	3121	3025	1405	1309
4*95	1.6	2.2	37	4264	4148	1881	7965
4*120	1.6	2.4	41	5278	5141	2272	2135
4*150	1.8	2.5	45	6487	6329	2778	2620
4*185	2	2.7	50	8074	7885	3434	3244
4*240	2.2	2.9	56	10497	10268	4403	4174
4*300	2.4	3.1	62	13080	12809	5428	5157
