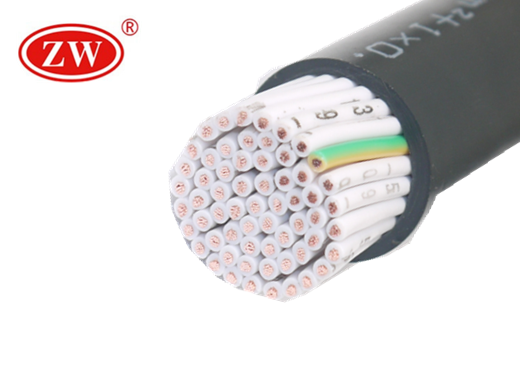

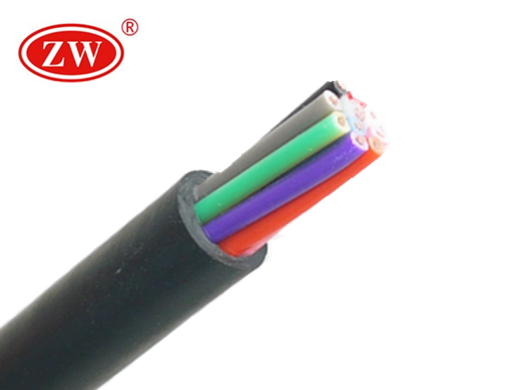

Control Cable

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Red-Yellow-Green-Blue-etc
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 0.6/1KV
  • Test Voltage:3.5KV
  • Standard: IEC

Control Cable Specification

  • Conductor

    Plain Annealed Copper Class 2

  • Insulation

    PVC Type TI4 to BS EN 50363-3

  • Sheath

     PVC Type 10 to BS 7655-4.2

  • Min Operating Temperature

    -20°C

  • Max Operating Temperature

    70°C

  • Core Colours

    Multi Cores

  • Sheath Colours

    Black or Grey

  • Current Carrying Capacity

    For current ratings refer to IEC Strandard

The Characteristics of Control Cable

Application:
Control Cable is used as power and connecting cables in mechanical engineering for tooling machinery, control unit, production lines, transportation equipment, conveyor and assembly lines as well as in plant construction under the circumstance that the rated voltage is up to 450/750V AC.
Standard:
The product implement the standards GB/T5023, equivalent to IEC60 227. And it can also be made complying with ASTM, DIN, BS standards etc.
Character and Relevant Parameters:
1. Long-term service temperature of the cable conductor: 70°C
2. Rated voltage: 300/500V,450/750V ,600/1000V.
3. Cable lying temperature ≥ 0°C
4. Cores: 2, 3, 4, 5, 6,7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61
5. Minimun bending radius:
Non armored ≥ out diameter of cable 6 times
Armored layer or copper tape shielded ≥ outer diameter of cable 12 times
Shielded layer soft cable ≥ outer diameter of cable 6 times
Customer Service:
Being one of the leading Control Cable manufacturers, we always put quality in the first place. In order to guarantee the performance of Control Cable, ZW produce the cable in strict accordance with international standards. Our pvc control cable is very popular in the world. We promise to provide the qualified products for our customers.

Control Cable Parameter:

Type Name Section Area(mm2) No. of Core

KVV

Copper Conductor, PVC Insulated and Sheathed control cable

0.75 1.0 1.5 2.5

2-8 10 12 14 16  19 24 27 30 37

4.0  6.0

2-8 10 12 14

KVVP

Copper Conductor, PVC Insulated and Sheathed, Copper-braid Screened Control Cable

0.75 1.0 1.5 2.5

2-8 10 12 14 16  19 24 27 30 37

4.0  6.0

2-8 10 12 14

KVVP2

Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Control Cable

0.75 1.0 1.5 2.5

2-8 10 12 14 16  19 24 27 30 37

4.0  6.0

2-8 10 12 14

KVVP2-22

Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Steel-tape armored Control Cable

0.75 1.0 1.5 2.5

2-8 10 12 14 16  19 24 27 30 37

4.0  6.0

2-8 10 12 14

KVV22

Copper Conductor, PVC Insulated and Sheathed, Steel-tape armored Control Cable

0.75 1.0 1.5 2.5

2-8 10 12 14 16  19 24 27 30 37

4.0  6.0

2-8 10 12 14

KVVR

Copper Conductor, PVC Insulated and Sheathed, Flexible Control Cable

0.75 1.0 1.5 2.5

2-8 10 12 14 16  19 24 27 30 37

4.0  6.0

2-8 10 12 14

KVVRP

Copper Conductor, PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable

0.75 1.0 1.5 2.5

2-8 10 12 14 16  19 24 27 30 37

4.0  6.0

2-8 10 12 14
