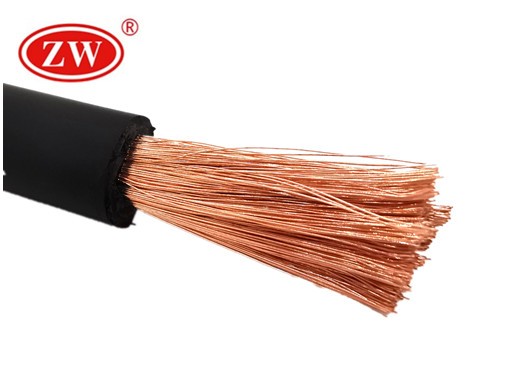

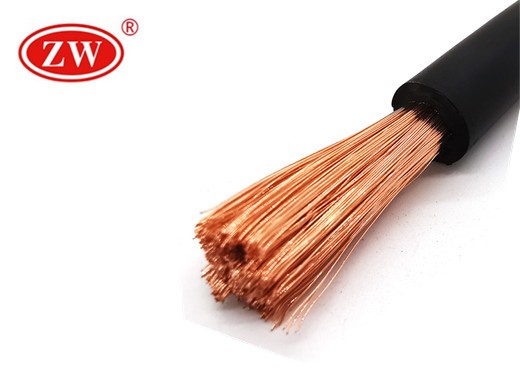

H01N2-D Welding Cable

  • Conductor: Copper
  • Insulation: Rubber
  • Insulation Color: Red,Black
  • Temperature Range: -30°C to +90°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard:IEC, GB,UL

H01N2-D Welding Cable Specification

  • Conductor

    Plain Annealed Copper Class 5 to BS EN 60228

  • Insulation


  • Sheath


  • Min Operating Temperature


  • Max Operating Temperature


  • Core Colours


  • Sheath Colours


  • Current Carrying Capacity

    For current ratings refer to IEC

The Characteristics of H01N2-D Welding Cable

H01N2-D Welding Cable can be used as entertainment or stage lighting cables for movie theatres, lighting and sound systems, and communication vans. Other possible uses for welding cable include battery cables for cars, inverter cables, and as a cheaper alternative to pendant/reeling cable on hoists and cranes. For example, many solar power installations use welding cable extensively to connect solar panels, battery banks, and converters.
H01N2-D Welding Cable
Extra Flexibility:
When high flexibility required, welding cable shall make a substitute.
Resistant to cuts, tears and abrasion in addition to moisture. Welding Wire offers good color retention along with great flexibility.
Suitable Uses:
Welding Cable is used for connection from electrode holder and clamp to arc welder, bus, welding box or transformer. May also be used in automotive applications where high flexibility and superior abrasion and chemical resistance is required.

H01N2-D Welding Cable Parameter

Conductor Size Max Diameter of Wire(0.21mm) Coated Layer Thinckness (mm) Sheath Thickness(mm) Total Diameter(mm) Max. resistance at 20℃ (Ω/km)
16 0.21 2.0 1.3 10.3 1.16
25 0.21 2.0 1.3 11.5 0.785
35 0.21 2.0 1.3 13 0.536
50 0.21 2.0 1.5 15 0.379
70 0.21 2.5 1.6 17 0.268
95 0.21 2.5 1.7 19.5 0/198
