H07V-K Specification

H07V-K Size:

Application:

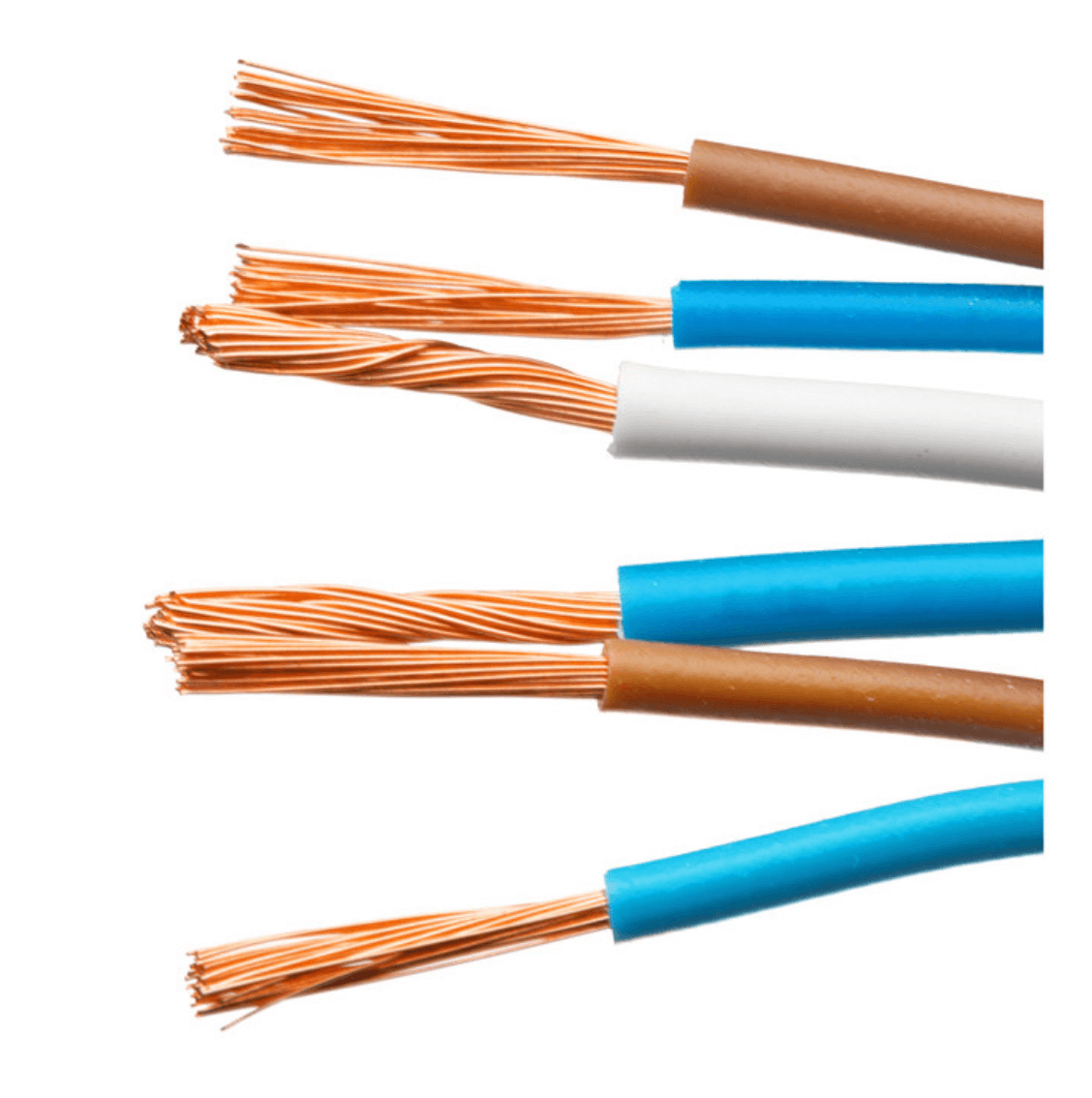

The H05V-K and H07V-K cables are color-coded PVC sheathed, copper single-core stranded wires. H07V-k are widely used in lighting, control and power distribution control panels, ducts, channels and even in wrap-around installations embedded in walls or plasterboard. Uniform color coding was introduced in 2004 to clearly show the different conductors within single-phase and three-phase circuits.

Standard:

H07V-K wire implements the standards GB/T5023, equivalent to IEC60 227. And H07V-K cable can also be made complying with ASTM, DIN, BS standards etc.

Brief construction:

1) Conductor: class 1 solid (H05V-U),

                       class 2 stranded (H05V-R)

                       class 5 flexible (H05V-K)

2) Insulation: PVC

3) Number of cores: Single core

4) Other special characteristics: Design and manufacture according t o the requirements of customers.

Characteristics:

1. Rated voltage H05V-K: Uo/U 300/500 V H07V-K: Uo/U 450/750 V

2. Max. operating temperature: 70°C

3. Min. operating temperature: -10°C (without mechanical shocks)

4. Max. short circuit temperature: 160°C

H07V-K and H05V-k Size:

We can produce many H07V-K and H05V-k Size. Such as 1.5mm cable, 2.5mm cable , 4mm cable, 6mm cable, 10mm cable, 16mm cable etc. The most popular size are 2.5mm cable and 4mm cable.
