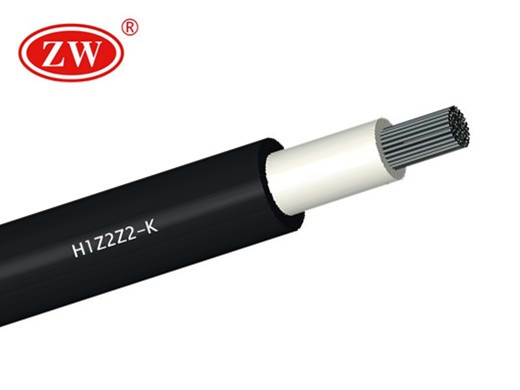

H1Z2Z2-K 4mm Dc Solar Cable

  • Conductor: Tinnd Copper
  • Insulation: XLPO
  • Insulation Color: Red
  • Temperature Range: -20°C to +90°C
  • Nominal Voltage: 0.6/1KV
  • Test Voltage: 3.5 KV
  • Standard: TUV

4mm solar cable Specification

  • Conductor

    Plain Annealed Copper Class 2

  • Insulation

    XLPO

  • Sheath

    XLPO

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    90°C

  • Core Colours

    Natural

  • Sheath Colours

    Red ,Black Or Blue

The Characteristics of 4mm Solar Cable

Application:
For the cabling between the solar modules and as extension cable between the module strings and the DC/AC inverter
Standard:
Cross-linked solar cables - type H1Z2Z2-K, certified according to EN 50618
Product features:
Flame retardant,Weather/UV-resistant,Ozone-resistant,Good notch and abrasion resistance
Cable Construction:
Conductor : Fine Wire Tinned Copper Conductor according to BS EN 50618 cl. 5.
Insulation : UV resistant, cross linkable, halogen free, flame retardant compound for core insulation.
Core Identification : Red, black or natural
Sheath : UV resistant, cross linkable, halogen free, flame retardant compound for Sheath over insulation.
Cable Colour : Black or Red,Blue
Benefits:
1.Reduction of flame propagation and of toxic combustion gases in the event of fire
2.Robust against mechanical impacts
3.For outdoor applications
4.Service Life: Expected life span ≥25 years

4mm solar cable Parameter

Construction Conductor Construction Conductor Outer Resistance Max Current Carring Capacity

n×mm2

n×mm

mm

mm

Ω/Km

A

1×1.5

30×0.25

1.58

4.90

13.3

30

1×2.5

50×0.256

2.06

5.45

7.98

41

1×4.0

56×0.3

2.58

6.15

4.75

55

1×6

84×0.3

3.15

7.15

3.39

70

1×10

142×0.3

4.0

9.05

1.95

98

1×16

228×0.3

5.7

10.2

1.24

132

1×25

361×0.3

6.8

12.0

0.795

176

1×35

494×0.3

8.8

13.8

0.565

218

1×50

418×0.39

10.0

16.0

0.393

280

1×70

589×0.39

11.8

18.4

0.277

350

1×95

798×0.39

13.8

21.3

0.210

410

1×120

1007×0.39

15.6

21.6

0.164

480
