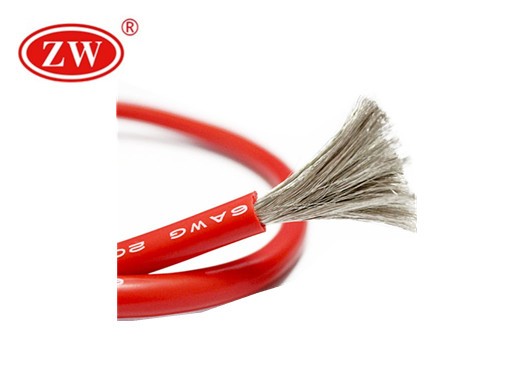

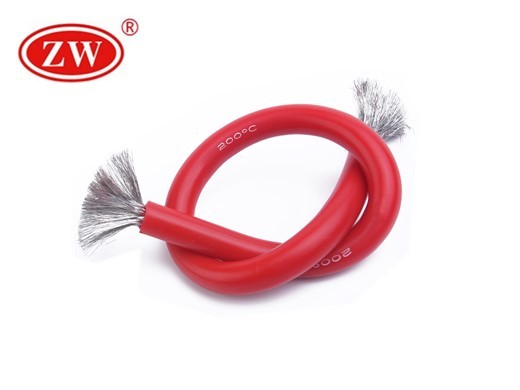

High Temperature Silicone Cable

Conductor:Tinned Copper
Insulation: Silicone Ruber
Insulation Color: Red - Yellow - Blue- White - Black- Yellow- Green - Brown - Orange- Purple
Normal volt: 600V
Standard: ISO9001, UL, RoHS

High Temperature Silicone Cable Specification

Silicone

Min Operating Temperature

-30°C
Max Operating Temperature

200°C
Core Colours

Red - Yellow - Blue- White - Black- Yellow- Green - Brown - Orange- Purple

Application:: High Temperature Silicone Cables are used where high flexibility is required and high temperatuer conditions. It is therefore a suitable connection cable for home electric appliance, high voltage machines like transformers, generators, motors, traction machines.
Standard:: UL758, UL62, UL1581
Mechanical properties:: Tensile strength: ≥3.45N/mm²; Elongation at break of insulation: ≥100%; Min.Bending radius: 6×OD
Advantage:: High Temperature Silicone cables have very good flexibility and good performance of resistance to high temperature, range from -55ºC up to 180ºC. The use of silicone rubber, a high grade corona resistant insulation material, gives the cable excellent dielectric strength. The braided synthetic yarn covering, which is applied directly over the insulation, gives the cable, because of its short braiding pitch and high compactness, an excellent mechnical protection by maintaining good flexibility. The varnishing of the braiding results in good antifriction properties, high abrasion resistance and excellent chemical resistance against transformer oil, light fuel oil and most types of cleaning agents. In the event of fire, no corrosive and toxic gases will be given off. Hence, damage caused by fire can be kept to minimum.

Customer Service on Silicone Cable:: Being one of the Cable Suppliers, we always put quality in the first place. In order to guarantee the performance of Silicone Rubber Cable , ZW produce the cable in strict accordance with international standards. Our silicone insulated cable is very popular in the world. We promise to provide the qualified products for our customers.
FAQ:: What is silicone wire used for?; Silcone Insulated wire is mainly used for household appliances, motors, electric heating appliances.; It has excellent aging resistance, softness and long service life. It is als called heat proof silicone cable.; What is condctor of silicone cable?; The conductor for silicone cable is tinned copoer.; What is different between PVC and Silicone?; Silicone is belong to rubber materal, pvc is belong to plastic material. The working temperature for PVC cable is -15ºC up to 70ºC, while the working temperature of Silicone Wire is -55ºC up to 180ºC.

AWG	Conductor			Insulation thickness		Braiding thickness	Cable OD		Resistance
AWG	size	Structure	OD	Norminal	OD		Norminal	Tolerance	Ω/KM
NO.	mm²	No./mm	mm	mm	mm	mm	mm	mm	Max.
16	1.31	7/0.49	1.55	1.28	4.11	0.2	4.5	±0.20	14.6
		26/0.254
		52/0.18
15	1.65	33/0.254	1.75	1.28	4.31	0.2	4.7	±0.20	11.3
14	2.08	41/0.254	1.95	1.28	4.51	0.2	4.9	±0.20	8.96
		7/0.62
		37/0.26
13	2.63	52/0.254	2.15	1.28	4.71	0.2	5.1	±0.20	7.1
12	3.31	65/0.254	2.5	1.28	5.06	0.2	5.5	0.3	5.64
12		43/0.32	2.5	1.28	5.06	0.2	5.5	-0.2	5.64
11	4.17	83/0.254	2.74	1.28	5.3	0.2	5.7	0.3	4.48
11	4.17	34/0.40	2.74	1.28	5.3	0.2	5.7	-0.2	4.48
10	5.261	35/0.45	3.2	1.28	5.76	0.2	6.2	0.1	3.55
9	6.631	53/0.40	3.98	1.28	6.54	0.2	7	0.1	2.81
8	8.367	70/0.40	4.4	1.28	6.96	0.2	7.4	0.1	2.3
7	10.55	84/0.40	4.6	1.28	7.16	0.25	7.7	0.1	1.79
6	13.3	105/0.40	5.3	1.28	7.86	0.25	8.4	0.1	1.42
5	16.77	133/0.40	6	1.28	8.56	0.25	9.1	0.1	1.12
4	21.15	168/0.40	6.8	1.28	9.36	0.3	10	0.1	0.89
3	26.67	210/0.40	7.6	1.28	10.16	0.3	10.8	0.2	0.707
2	33.62	266/0.40	8.5	1.28	11.06	0.3	11.7	0.2	0.56
1	42.41	217/0.50	9.6	1.28	12.16	0.55	13.3	0.2	0.449
1/0	53.49	276/0.50	11.2	1.53	14.26	0.55	15.4	0.2	0.355
2/0	67.43	342/0.50	12.2	1.53	15.26	0.55	16.4	0.2	0.282
3/0	85.01	437/0.50	13.8	1.53	16.86	0.55	18	0.2	0.223
4/0	107.2	551/0.50	15.5	1.53	18.56	0.65	19.9	0.2	0.177
250kcmil	127	646/0.50	17.5	1.53	20.56	0.65	21.9	0.5	0.151
300kcmil	152	779/0.50	19.5	2.24	22.56	0.65	23.9	0.5	0.125
350kcmil	177	912/0.50	21	2.24	24.06	0.65	25.4	0.5	0.108
400kcmil	203	1036/0.50	23	2.24	26.06	0.65	27.4	0.5	0.0942

You can order up to pieces FREE samples. We will contact you within 24 hours afer you fulfill the form.
