House Wire Red 6mm

Specification

Application:: The products is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances like lighting, electronic equipment, instrument and communication equipment with rated voltage 450/750V or less
Standard:: The product implement the standards GB/T5023, equivalent to IEC60 227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as t he requirements of customers.
Brief construction:: 1) Conductor: Copper or aluminium, Solid 2) Insulation: PVC 3) Number of cores: Single core 4) Other special characteristics: Design and manufacture according t o the requirements of customers.
Service performance:: 1) Long-term working temperature: not be higher than 70°C 2) When laying the cable, the ambient temperature should not lower than 0°C

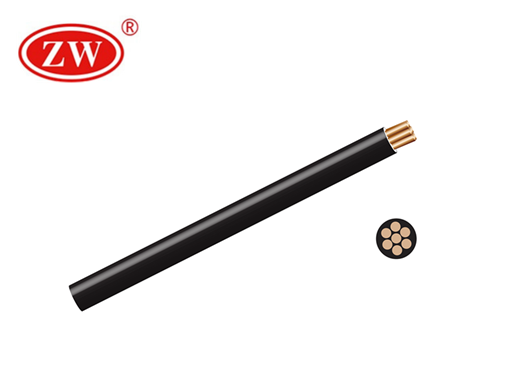

Structure diagram:

Nominal section(mm2)	No./dia. of core(mm)	Average dia.(mm)	Reference weight(kg/km)	Conductor resistance at 20℃(Ω/km)
1.5	7/0.52	3.5	20.6	12.1
2.5	7/0.67	4.2	33	7.41
4.0	7/0.85	4.8	48	4.61
6.0	7/1.04	5.6	68	3.08
10.0	7/1.35	7.6	115	1.83
16.0	7/1.70	8.8	176	1.15
25.0	7/2.14	11	272	0.727
