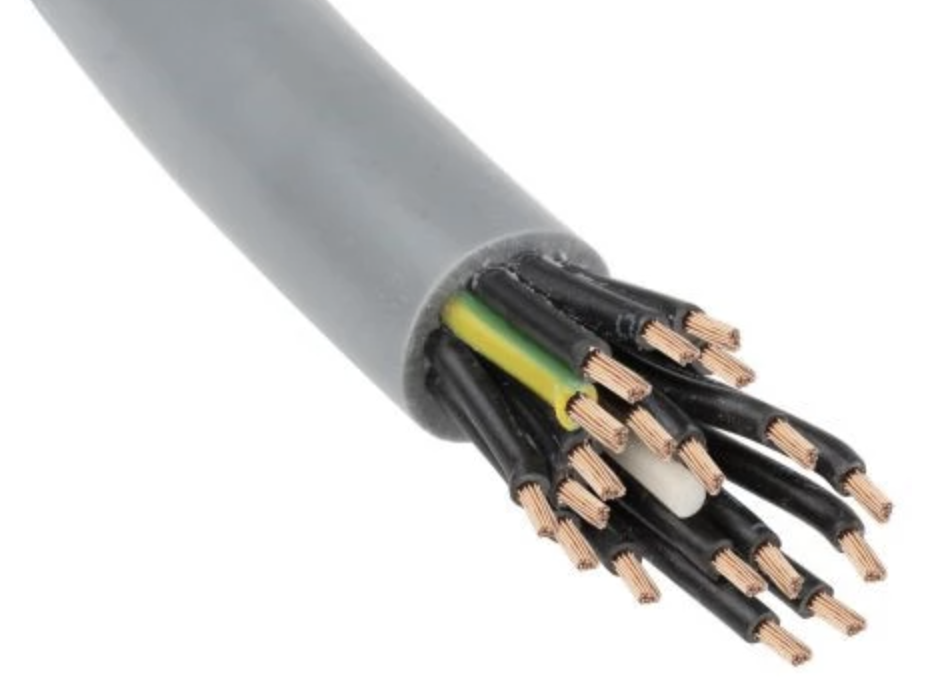

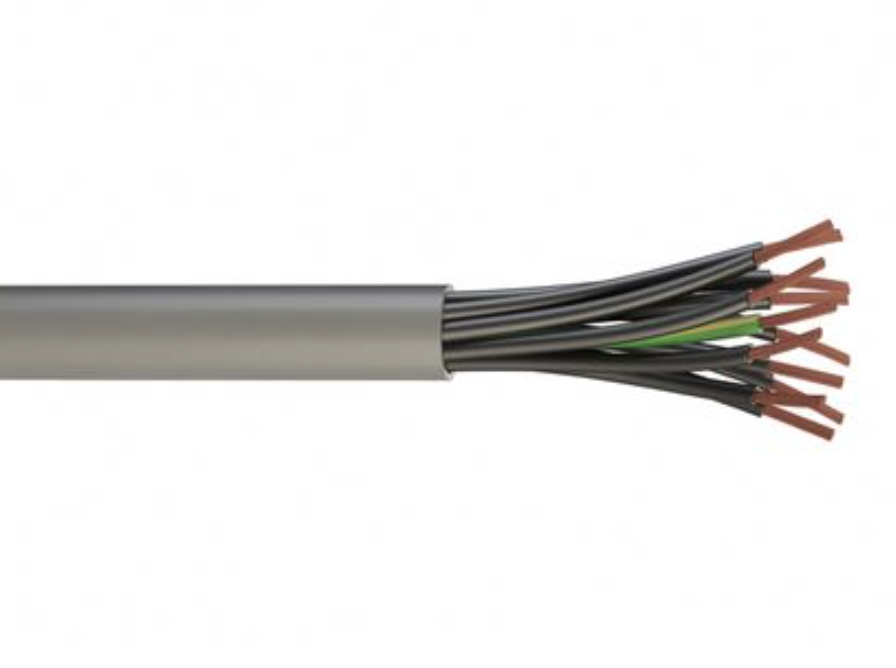

KVVR Cable

  • Conductor: Copper
  • Insulation: PVC,
  • Insulation Color: White-Black
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 300V/500V
  • Test Voltage: 1000V
  • Standard: IEC
Get A Quote For Free

kvvr cable Specification

  • Conductor

    Plain Annealed Copper Class 5 to BS EN 60228

  • Insulation

    PVC Type

  • Sheath

    PVC Type 1

    Min Operating Temperature

    -40°C

  • Max Operating Temperature

    70°C

  • Sheath Colours

    Black, Grey

  • Current Carrying Capacity

    For current ratings refer to table IEC.

The Characteristics of kvvr cable

Application:
kvvr cable is suitable for line electrical control equipment and instruments, monitoring and control circuits, electrical protection and measuring distribution equipment. The choice of high-quality control cables includes flexible control cables and flexible cables. These cables are supplied to a variety of industries and applications, including robotics, manufacturing, construction, electricity and power distribution. They are common in both commercial and industrial markets.
Standard:
PVC Insulated Flexible Electrical Wire

Customer Service:
Being one of the leading cable manufacturers, we always put quality in the first place. In order to guarantee the performance of kvvr cable, ZW produce the cable in strict accordance with international standards. Our kvvr cable is very popular in the world. We promise to provide the qualified products for our customers.

Kvvr cable Model

Model

Name

Main application

KVV

Copper conductor PVC insulated PVC sheathed control cable

For laying indoors, in trenches and in ducts, for fixed  installation

KVVP

Copper conductor PVC insulated PVC sheathed copper braiding screened control cable

For laying indoors, in trenches and in dusts, for fixed installation

KVVP2

Copper conductor PVC insulated and sheathed control cable with steel tape shield

For laying indoors, in trenches and in dusts and in ground, able

to withstand heavier mechanical force, for fixed installation

KVV22

Copper conductor PVC insulated and sheathed control cable with steel tape armour

For laying indoors, in trenches and in dusts and in ground, able

to withstand heavier mechanical force, for fixed installation

KVVR

Copper conductor PVC insulated flexible control cable

For laying indoors, movable and flexible

ZR-KVVRP

Copper conductor PVC insulated PVC sheathed flame retardant flexible control cable with braided shield

Fixed laying indoors with capability of moving and screening

ZR-KVV

Copper conductor PVC insulated and sheathed flame retardant control cable

For laying indoors, in trenches, in ducts and for fixed installation,

the cable should be flame retardant

ZR-KVVP2

Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape shield

For laying indoors, in trenches, in ducts and for fixed installation,

 the cable should be flame retardant

ZR-KVV22

Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape armour

For laying indoors, in trenches, in ducts and underground, the

cable should be flame-retardant and able to bear beavier

external mechanical force, and for fixed installation

ZR-KVVR

Copper conductor PVC insulated and sheathed flame retardant flexible control cable

For laying indoors, and the cable should be flexible and movablea
