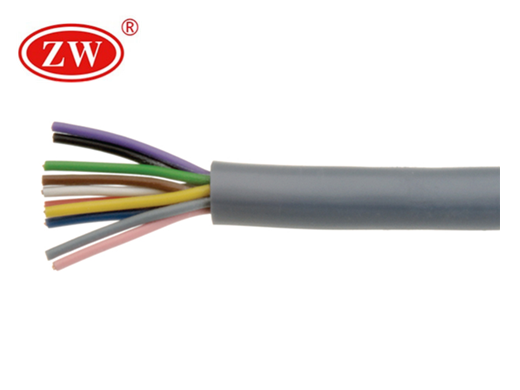

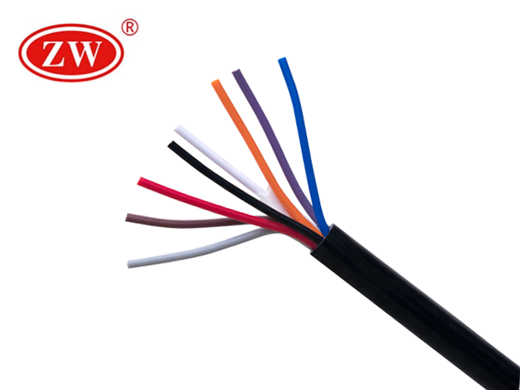

KVV Control Cable

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Any Colors
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 0.6/1KV
  • Test Voltage:3.5KV
  • Standard: IEC

KVV Cable Specification

  • Conductor

    Plain Annealed Aluminum Class 1 to BS EN 60228

  • Insulation

    PVC Type

  • Sheath

     PVC Type

  • Min Operating Temperature

    -20°C

  • Max Operating Temperature

    70°C

  • Core Colours

    Any Colors

  • Sheath Colours

    Black,Grey,White

  • Current Carrying Capacity

    For current ratings refer to IEC

The Characteristics of KVV Control Cable

Application:
KVV control cable is suitable for connecting wires between electrical equipments in controlling , monitoring loop and protecting circuit at rated voltage up to and include 450/750V(A.C.)
Standard:
KVV Control Cable
Number of core:
2~61 cores
Temperature Limits: -30°C to +70°C
Minimum Bending Radius: As per cable manufacturer datasheet Should not be installed at temperatures below : 0°C
Nominal Cross-section area:
0.5~10mm2
Advantage:
1. KVV Cable has excellent electric and mechanical characteristics.
2. Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant.
3 Simple in structure,Convenient to use.
4. Reduce costs.

Control Cable PARAMETER

Nominal cross sectional area mm² Approx. overall dia. mm Approx. Dia. Under Armour mm Nominal dia. of armour wires mm Approx. cable weight kg/km Max. conductor resistance @ 20°C Ohms/km Conductor short circuit rating (1 sec) kA Armour short circuit rating (1sec) kA/th> Direct in ground Amps In duct Amps In air Amps Volt drop single phase AC touching mV/A/m


1.5

12.9

 8.3

0.9

400

12.1

 0.20

0.78

32

 26

 26

27

2.5

14.4

9.8

0.9

470

7.41

0.35

0.92

42

34

35

16

4

15.7

11.1

0.9

580

4.61

0.57

1.0

55

45

47

10

6

17.9

12.4

1.25

810

3.08

0.86

1.6

69

56

59

6.8

10

19.7

14.2

1.25

10875

1.83

1.4

1.9

92

75

82

4

16

22.4

16.7

1.25

1450

1.15

2.2

2.2

119

96

107

2.5

25

27.3

20.7

1.6

2060

0.727

3.6

3.2

152

124

140

1.65

35

30.2

23.4

1.6

2550

0.524

5.0

3.7

182

149

172

1.15

50*

32.2

26

1.6

 2875

0.387

7.1

4.1

217

177

209

0.87

70*

38

30.6

2

4250

0.268

10.0

6.1

266

218

263

0.6

95*

41.7

34.1

2

 5475

0.193

13.6

6.8

319

263

324

0.45

120*

45.4

37.6

2.5

7175

0.153

17.2

9.5

363

300

376

0.37

 150*

50.6

41.6

2.5

8475

0.124

21.4

10.6

406

338

430

0.3

185*

55.3

46

2.5

10350

0.0991

26.5

11.8

458

382

495

0.26

240*

61.2

51.7

2.5

13000

0.0754

34.3

13.4

529

442

584

0.21

300*

66.8

56.9

2.5

15750

0.0601

42.9

14.8

592

496

666

0.185

400*

75.4

64

3.15

20400

0.047

57.2

20.9

667

570

766

0.165
