Multi Cores Shielded Armoured Cable

Shielded Armoured Cable Specification

Application:
Shielded Armoured Cable Cable is suitable to use within Audio, Control and Instrumentation purpose.The cable is constructed with PVC Insulation with Galvanized steel wire armouring and PVC inner & outer Jacket.: Standard:; UL,IEC,GB

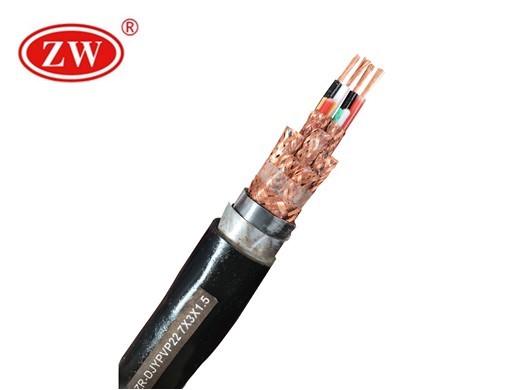

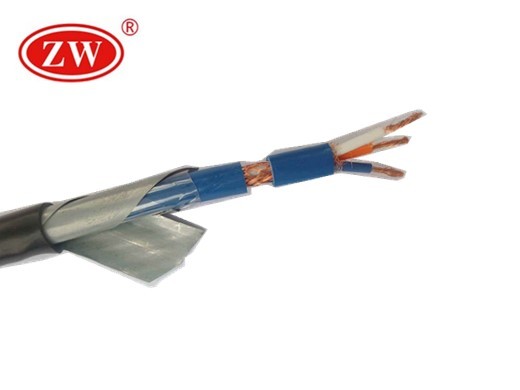

The Shielded Armoured Cable Structure:: Insulation: PVC insulation.; Core Color: Any color .; Shielding:Braided Copper Wire or Tinned Copper Wire;; Armouring:Galvanized Steel Wire or Steel Tape; Jacket: PVC
Shielded Cable Characteristic:: Good oil resistant, abrasion resistant, chemical solventresistant, radiation resistant.; Short twist pitch, stable transmission characteristics .; Double shielding,resistance to electromagnetic interference; Bending radius allowance of the cable.
Our Service:: (1) MUTUAL BENEFIT: Our offer will be reasonable, our price will be cheaper in the same quality.; (2) CUSTOMIZE: We can make the product as your request, Specification and Quality can meet your request.; (3) OEM: (1)Printing your Logo.; (4)Designing your packing.; (5) MIX ORDER: We accept mix order, different model and small quantity order.; (6) AFTER SERVICE: 70 Years Guarantee.

Model AWG	Conductor		Insualtion		Spiral	Jacket
	Conductor Diameter	Max. Resistance at 20°C	Thickness	OD		Thickness	Min. Dia.
	(NO/mm)	MΩ/km	mm	mm		mm	mm
30	7/0.1	381	0.4	1.1	32/0.10	0.5	2.1
28	7/0.127	239	0.4	1.2	34/0.10	0.5	2.2
26	7/0.16	150	0.4	1.3	38/0.10	0.5	2.3
24	11/0.16	942	0.4	1.4	42/0.10	0.5	2.4
22	17/0.6	59.4	0.4	1.55	43/0.10	0.5	2.55
20	26/0.16	36.7	0.44	1.80	45/0.12	0.55	2.85
18	41/0.16	23.2	0.44	2.05	51/0.12	0.55	3.5
16	26/0.254	14.6	0.46	2.4	55/0.12	0.56	3.8
