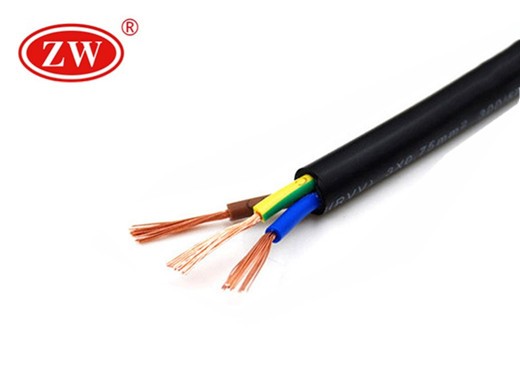

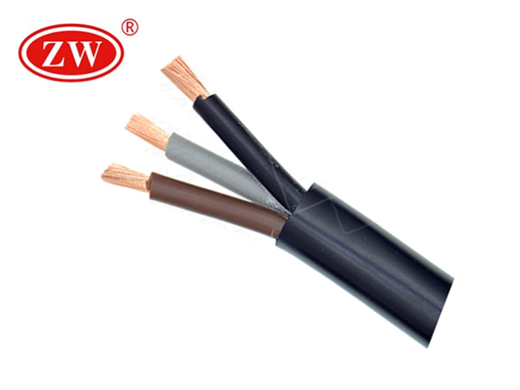

PVC Insulation Electrical Wire

PVC Electrical Wire Specification

Application:: PVC Electrical Wire Wire is mainly used for medium and light mobile appliances, instruments, household appliances, power lighting and other flexible use places, They can transmit control signals, but also can transmit power signals, also suitable for laying in the bridge and hose.
Standard:

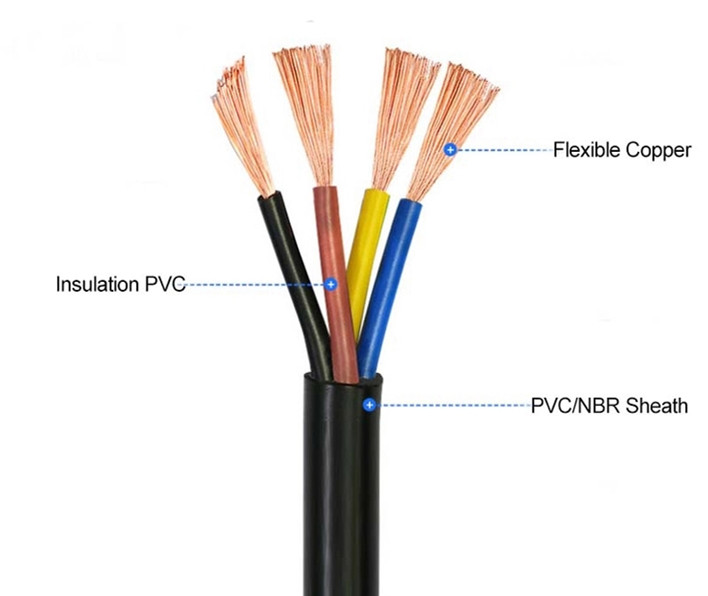

Properties:: Good mechanical properties, excellent electrical insulation, good chemical stability and water resistance.

Model No.	Conductor		Insualtion		Jacket
	Conductor Diameter	Max. Resistance at 20°C	Thickness	Min. Resistance at 70°C	Thickness	Min. Dia.	Max.
	(NO/mm)	MΩ/km	mm	MΩ/km	mm	mm	mm
2×0.75	24×0.20	26	0.6	0.011	0.8	6	7.6
2×1.0	32×0.20	19.5	0.6	0.01	0.8	6.4	8
2×1.5	30×0.25	13.3	0.7	0.01	0.8	7.4	9
2×2.5	49×0.25	7.98	0.8	0.009	1	8.9	11
3×0.75	24×0.20	26	0.6	0.011	0.8	6.4	8
3×1.0	32×0.20	19.5	0.6	0.01	0.8	6.8	8.4
3×1.5	30×0.25	13.3	0.7	0.01	0.9	8	9.8
3×2.5	49×0.25	7.98	0.8	0.009	1	9.6	12
4×0.75	24×0.20	26	0.6	0.011	0.8	6.8	8.6
4×1.0	32×0.20	19.5	0.6	0.01	0.9	7.6	9.4
4×1.5	30×0.25	13.3	0.7	0.01	1	9	11
4×2.5	49×0.25	7.98	0.8	0.009	1.1	10.5	13
5×0.75	24×0.20	26	0.6	0.011	0.9	7.4	9.6
5×1.0	32×0.20	19.5	0.6	0.01	0.9	8.3	10
5×1.5	30×0.25	13.3	0.7	0.01	1.1	10	12
5×2.5	49×0.25	7.98	0.8	0.009	1.2	11.5	14
