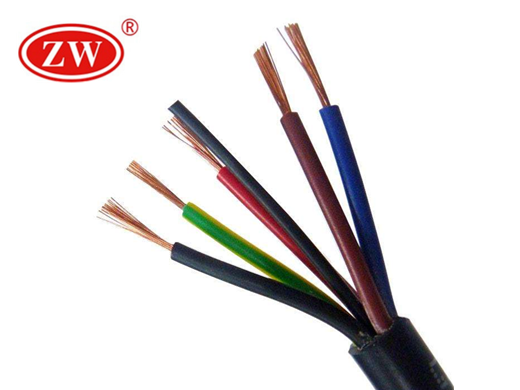

PVC Multi Cores Flexible Cable

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Any Color
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard: IEC
Get A Quote For Free

PVC Flexible Cable Specification

  • Conductor

    Plain Annealed Copper Class 5

  • Insulation

    PVC Type

  • Sheath

    PVC Type

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    70°C

  • Core Colours

    Any Color

  • Sheath Colours

    Black, Grey, White

  • Current Carrying Capacity

    For current ratings refer to IEC

The Characteristics of PVC Multi Cores Flexible Cable

Application:
PVC Multi Cores Flexible Cables are especially designed for use with high reversed bending stress as for example in production lines, high rack storage areas or pacing machines. They show a very good durability with very small bending radius.
Multi-Core Flexible Cable Standard:
The product implement the standards GB/T5023, equivalent to IEC60 227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as t he requirements of customers.
PVC Flexible Cable Structure:
1.Suitable to be installed in electrical power transmission and disteribution lines rated voltage 450/750V.
2.conductor's rated working temperature:≤70
3.Short-circuit temperature160/5sec
4.Cable laying environment≥0
5.Cable laying, bend radius≥10 times cable O.D.
Cable Diameter:
0.05-50mm2
PVC Flexible Cable Working conditions:
1.This maximum working temperature of the conductor is 70C.
2 .During having a short (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 160oC.
3. Environment temperature should be no lower than 0oC for laying the cable.
4. Bending radius allowance of the cable.
PVC Flexible Cable Construction:
High conductivity bunched copper conductors, insulated and colour coded with a general purpose flexible grade PVC.
The cores are then twisted together for maximum flexibility and sheathed with soft flexible grade PVC in a circular configuration..
Customer service on Flexible Cable:
Being one of the leading Flexible Cable manufacturers, we always put quality in the first place. In order to guarantee the performance of PVC Cable, ZW produce the cable in strict accordance with international standards. Our PVC Flexible Cable is very popular in the world. We promise to provide the qualified products for our customers.

PVC Flexible Cable Parameter

Model No. Conductor Insualtion Jacket
Conductor Diameter Max. Resistance at 20°C Thickness Min. Resistance at 70°C Thickness Min. Dia. Max.
(NO/mm) MΩ/km mm MΩ/km mm mm mm
2×0.75 24×0.20 26 0.6 0.011 0.8 6 7.6
2×1.0 32×0.20 19.5 0.6 0.01 0.8 6.4 8
2×1.5 30×0.25 13.3 0.7 0.01 0.8 7.4 9
2×2.5 49×0.25 7.98 0.8 0.009 1 8.9 11
3×0.75 24×0.20 26 0.6 0.011 0.8 6.4 8
3×1.0 32×0.20 19.5 0.6 0.01 0.8 6.8 8.4
3×1.5 30×0.25 13.3 0.7 0.01 0.9 8 9.8
3×2.5 49×0.25 7.98 0.8 0.009 1 9.6 12
4×0.75 24×0.20 26 0.6 0.011 0.8 6.8 8.6
4×1.0 32×0.20 19.5 0.6 0.01 0.9 7.6 9.4
4×1.5 30×0.25 13.3 0.7 0.01 1 9 11
4×2.5 49×0.25 7.98 0.8 0.009 1.1 10.5 13
5×0.75 24×0.20 26 0.6 0.011 0.9 7.4 9.6
5×1.0 32×0.20 19.5 0.6 0.01 0.9 8.3 10
5×1.5 30×0.25 13.3 0.7 0.01 1.1 10 12
5×2.5 49×0.25 7.98 0.8 0.009 1.2 11.5 14
