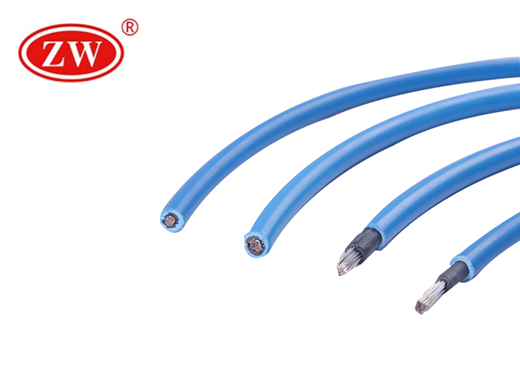

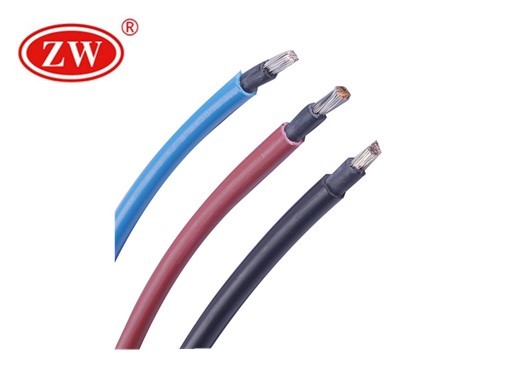

PV Solar Cable

  • Conductor: Tinnd Copper
  • Insulation: XLPO
  • Sheath:XLPO
  • Insulation Color: Red,Black,Blue
  • Temperature Range: -20°C to +90°C
  • Nominal Voltage: 0.6/1KV
  • Test Voltage: 3.5 KV
  • Standard: TUV
Get A Quote For Free

pv solar cable Specification

  • Conductor

    Plain Annealed Copper Class 5

  • Insulation

    XLPO

  • Sheath

    XLPO

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    90°C

  • Core Colours

    Red,Black,Blue

  • Sheath Colours

    Black,Red,Blue

The Characteristics of PV Solar Cable

Application:
PV Solar Cable is used in photovoltaic power generation and solar system,interconnects solar panels and electrical components in the photovoltaic system.The size from 1.5 mm2 to120mm2 ,suitable for outdoor extreme environments,UV,ozone,hydrolysis resistant.
Standard:
TUV Certified Photovoltaic Solar Cable certified according to EN 50618:2014
Product features:
Flame retardant,Weather/UV-resistant,Ozone-resistant,Good notch and abrasion resistance
Cable Construction:
Conductor : Fine Wire Tinned Copper Conductor according to BS EN 50618 cl. 5.
Insulation : UV resistant, cross linkable, halogen free, flame retardant compound for core insulation. Core Identification : Red, black or natural
Sheath : UV resistant, cross linkable, halogen free, flame retardant compound for Sheath over insulation. Cable Colour : Black or Red,Blue
Advantage:
1.Dual wall insulation.Electron beam cross-linked.
2.Excellent resistance to U.V, oil, greases, oxygen, and ozone.
3.Excellent resistance to abrasion.
4.Halogen-free, flame retardant, low toxicity.
5.Excellent flexibility and stripping performance
6.High Voltage and Current carrying capacity.
Customer Service:
Being one of the leading PV Solar Cable manufacturers, we always put quality in the first place. In order to guarantee the performance of PV Solar Cable, ZW produce the cable in strict accordance with international standards. Our PV Solar Cable is very popular in the world. We promise to provide the qualified products for our customers.

pv solar cable Parameter

Construction Conductor Construction Conductor Outer Resistance Max Current Carring Capacity

n×mm2

n×mm

mm

mm

Ω/Km

A

1×1.5

30×0.25

1.58

4.90

13.3

30

1×2.5

50×0.256

2.06

5.45

7.98

41

1×4.0

56×0.3

2.58

6.15

4.75

55

1×6

84×0.3

3.15

7.15

3.39

70

1×10

142×0.3

4.0

9.05

1.95

98

1×16

228×0.3

5.7

10.2

1.24

132

1×25

361×0.3

6.8

12.0

0.795

176

1×35

494×0.3

8.8

13.8

0.565

218

1×50

418×0.39

10.0

16.0

0.393

280

1×70

589×0.39

11.8

18.4

0.277

350

1×95

798×0.39

13.8

21.3

0.210

410

1×120

1007×0.39

15.6

21.6

0.164

480
