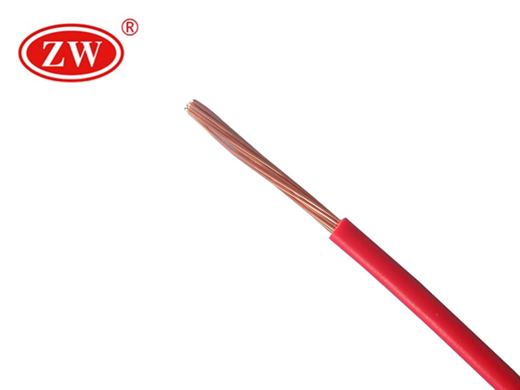

Single Core PVC Wire

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Red-Yellow-Green-Blue
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 0.6/1KV
  • Test Voltage:3.5KV
  • Standard: IEC
Get A Quote For Free

Single Core Wire Specification

  • Conductor

    Plain Annealed Aluminum Class 2 to BS EN 60228

  • Insulation

    PVC Type TI4 to BS EN 50363-3

  • Sheath

     PVC Type 10 to BS 7655-4.2

  • Min Operating Temperature

    -20°C

  • Max Operating Temperature

    70°C

  • Core Colours

    1

  • Sheath Colours

    Black

  • Current Carrying Capacity

    For current ratings refer to IEC Strandard

The Characteristics of Single Core PVC Wire

Application:
Single core cables, as the name implies, have only one conductor and are usually composed of copper or aluminum and insulation. The larger the diameter of the cable, the less flexibility it gains. The conductor of these wires can be solid or stranded. Single core pvc wire has good features such as resistance to high temperature, oil, water, wearing, acid, alkali, corrosion. Widely used as transmitting electricity and power distributing cable in chemistry, petroleum, generating power and metallurgy industry.
Standard:
Single Core PVC wire
Properties of Single Core Wire:
1.The long-time permissible working temperature of cable conductive core is not more than 70 degrees.
2.During short circuit (max permanent time is not more than 5 seconds), the max temperature of cable conductor is not more than 165°C.
3.The difference level of laying cable is not restricted.When laying the cable,ambient temperature is not lower than 0°C.
4.They have good chemical stability,and properties of acid resistance,alkali resistance,salt resistance,oil resistance,solvent resistance and flame resistance.
5.The max temperature of the conductor of cable should less then 160 °C when short circuit. (less then 5 second)
6.Cable laying, bend radius≥10 times cable O. D.
7,Rated voltage: 0.6/1kV
Advantage:
1. Excellent electric and mechanical characteristics.
2. Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant.
3 Simple in structure,Convenient to use.
4. Reduce costs.

Single Core Wire PARAMETER

Nominal cross sectional area mm² Approx. overall dia. mm Approx. Dia. Under Armour mm Nominal dia. of armour wires mm Approx. cable weight kg/km Max. conductor resistance @ 20°C Ohms/km Conductor short circuit rating (1 sec) kA Armour short circuit rating (1sec) kA/th> Direct in ground Amps In duct Amps In air Amps Volt drop single phase AC touching mV/A/m

BS5467 4 Core Cables

1.5

12.9

 8.3

0.9

400

12.1

 0.20

0.78

32

 26

 26

27

2.5

14.4

9.8

0.9

470

7.41

0.35

0.92

42

34

35

16

4

15.7

11.1

0.9

580

4.61

0.57

1.0

55

45

47

10

6

17.9

12.4

1.25

810

3.08

0.86

1.6

69

56

59

6.8

10

19.7

14.2

1.25

10875

1.83

1.4

1.9

92

75

82

4

16

22.4

16.7

1.25

1450

1.15

2.2

2.2

119

96

107

2.5

25

27.3

20.7

1.6

2060

0.727

3.6

3.2

152

124

140

1.65

35

30.2

23.4

1.6

2550

0.524

5.0

3.7

182

149

172

1.15

50*

32.2

26

1.6

 2875

0.387

7.1

4.1

217

177

209

0.87

70*

38

30.6

2

4250

0.268

10.0

6.1

266

218

263

0.6

95*

41.7

34.1

2

 5475

0.193

13.6

6.8

319

263

324

0.45

120*

45.4

37.6

2.5

7175

0.153

17.2

9.5

363

300

376

0.37

 150*

50.6

41.6

2.5

8475

0.124

21.4

10.6

406

338

430

0.3

185*

55.3

46

2.5

10350

0.0991

26.5

11.8

458

382

495

0.26

240*

61.2

51.7

2.5

13000

0.0754

34.3

13.4

529

442

584

0.21

300*

66.8

56.9

2.5

15750

0.0601

42.9

14.8

592

496

666

0.185

400*

75.4

64

3.15

20400

0.047

57.2

20.9

667

570

766

0.165
