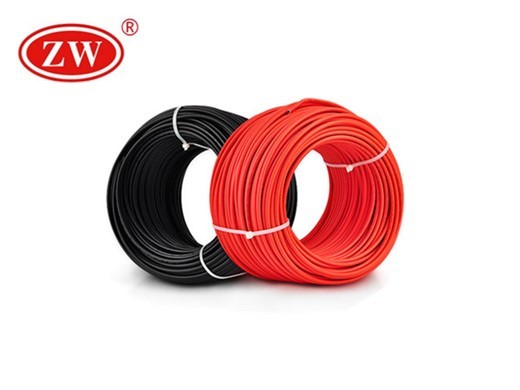

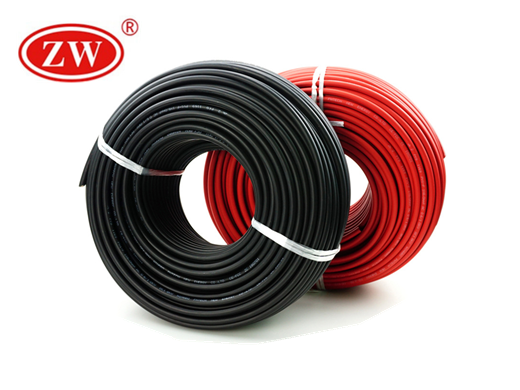

Solar PV Cable and Wire

  • Conductor: Tinnd Copper
  • Insulation: XLPO
  • Insulation Color: Red
  • Temperature Range: -20°C to +90°C
  • Nominal Voltage: 0.6/1KV
  • Test Voltage: 3.5 KV
  • Standard: TUV

Solar PV Cable Specification

  • Conductor

    Plain Annealed Copper Class 2 to BS EN 60228

  • Insulation

    XLPO

  • Sheath

    XLPO

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    90°C

  • Core Colours

    Red or Black

  • Sheath Colours

    Red or Black

The Characteristics of Solar PV Cable

Application:
Applied to solar panels for power generation and related components of the wiring, connection, particularly suitable for outdoor. Resistance to sunlight, anti-aging, using the low smoke halogen-free flame retardant materials, higher grade, more safety.
Standard:
Adapted to PV systems, 2 Pfg 1169 / 08.2007 and EN 50618:2015.
Electrical Parameters:
Voltage Rating : AC 0.6 / 1.0 kV Max. PV - System Voltage : DC up to 2.0 kV possible Max. Permissible Operating Voltage in AC Systems : 0.7 / 1.2 kV Max. Permissible Operating Voltage in DC Systems : 0.9 / 1.8 kV Test Voltage : AC 6 kV / DC 10 kV (15 min.)
Cable Construction:
Conductor : Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.
Insulation : UV resistant, cross linkable, halogen free, flame retardant compound for core insulation.
Core Identification : Red, black or natural
Sheath : UV resistant, cross linkable, halogen free, flame retardant compound for Sheath over insulation.
Cable Colour : Black or Red
PV Wire Advantage:
PV modules operate at high temperatures and are exposed to a variety of environmental conditions. The NEC limits various PV array applications to USE-2 or PV wire. These cables need to meet the required sunlight resistance and temperature ratings for the environment. Solar PV Cables and wires are manufactured for use in photovoltaic applications, while USE-2 cable types are typically manufactured for underground service entrance applications. Both cable types commonly contain XLPE insulation and can be sunlight resistant and/or rated for direct burial.

Solar PV Cable and Wire Parameter

Construction Conductor Construction Conductor Outer Resistance Max Current Carring Capacity

n×mm2

n×mm

mm

mm

Ω/Km

A

1×1.5

30×0.25

1.58

4.90

13.3

30

1×2.5

50×0.256

2.06

5.45

7.98

41

1×4.0

56×0.3

2.58

6.15

4.75

55

1×6

84×0.3

3.15

7.15

3.39

70

1×10

142×0.3

4.0

9.05

1.95

98

1×16

228×0.3

5.7

10.2

1.24

132

1×25

361×0.3

6.8

12.0

0.795

176

1×35

494×0.3

8.8

13.8

0.565

218

1×50

418×0.39

10.0

16.0

0.393

280

1×70

589×0.39

11.8

18.4

0.277

350

1×95

798×0.39

13.8

21.3

0.210

410

1×120

1007×0.39

15.6

21.6

0.164

480
