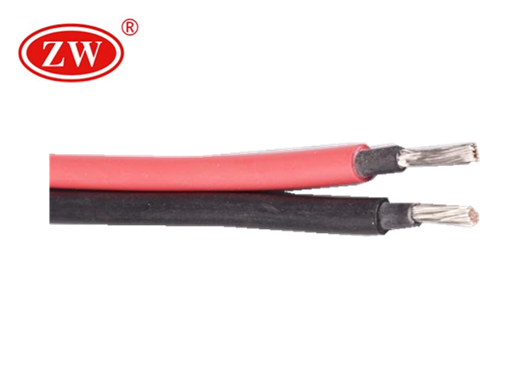

Solar Panel Wire

  • Conductor: Tinnd Copper
  • Insulation: XLPO
  • Insulation Color: Red,Black
  • Temperature Range: -20°C to +90°C
  • Nominal Voltage: 0.6/1KV
  • Test Voltage: 3.5 KV
  • Standard: TUV,UL

Solar Panel Wire Specification

  • Conductor

    Plain Annealed Copper Class 5.

  • Insulation

    XLPO

  • Sheath

    XLPO

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    90°C

  • Core Colours

    Red or Black

  • Sheath Colours

    Red or Black

The Characteristics of Solar Panel Wire

Application:
Solar Panel Wire is appropriate for use in solar power applications that require 600 volt rating. For use in grounded interconnection and ungrounded Photovoltaic power systems.
Single Core Solar Panel Cable Standard:
Adapted to PV systems, 2 Pfg 1169 / 08.2007 and UL.
 Single Core Solar Panel Cable Electrical Parameters:
Voltage Rating : AC 0.6 / 1.0 kV Max. PV - System Voltage : DC up to 2.0 kV possible Max. Permissible Operating Voltage in AC Systems : 0.7 / 1.2 kV Max. Permissible Operating Voltage in DC Systems : 0.9 / 1.8 kV Test Voltage : AC 6 kV / DC 10 kV (15 min.)
 Cable Construction:
Conductor : Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.
Insulation : UV resistant, cross linkable, halogen free, flame retardant compound for core insulation.
Core Identification : Red, black or natural
Sheath : UV resistant, cross linkable, halogen free, flame retardant compound for Sheath over insulation.
Cable Colour : Black or Red
Solar Cable Advantage:
Solar Panel wire modules operate at high temperatures and are exposed to a variety of environmental conditions.
The NEC limits various PV array applications to USE-2 or PV wire. These cables need to meet the required sunlight resistance and temperature ratings for the environment.
Solar Panel Wire is manufactured for use in photovoltaic applications, while USE-2 cable types are typically manufactured for underground service entrance applications.
Both cable types commonly contain XLPO insulation and can be sunlight resistant and/or rated for direct burial.

Solar Panel Wire Parameter

Construction Conductor Construction Conductor Outer Resistance Max Current Carring Capacity

n×mm2

n×mm

mm

mm

Ω/Km

A

1×1.5

30×0.25

1.58

4.90

13.3

30

1×2.5

50×0.256

2.06

5.45

7.98

41

1×4.0

56×0.3

2.58

6.15

4.75

55

1×6

84×0.3

3.15

7.15

3.39

70

1×10

142×0.3

4.0

9.05

1.95

98

1×16

228×0.3

5.7

10.2

1.24

132

1×25

361×0.3

6.8

12.0

0.795

176

1×35

494×0.3

8.8

13.8

0.565

218

1×50

418×0.39

10.0

16.0

0.393

280

1×70

589×0.39

11.8

18.4

0.277

350

1×95

798×0.39

13.8

21.3

0.210

410

1×120

1007×0.39

15.6

21.6

0.164

480
