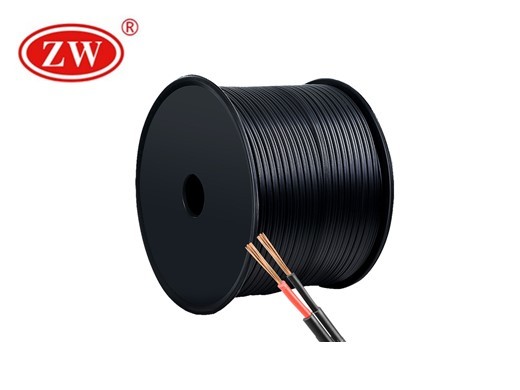

TUV Twin Core Solar Cable

  • Conductor: Tinnd Copper
  • Insulation: XLPO
  • Insulation Color: Red and Black
  • Temperature Range: -20°C to +90°C
  • Nominal Voltage: 0.6/1KV
  • Test Voltage: 3.5 KV
  • Standard: TUV

Twin Core Solar Cable Specification

  • Conductor

    Plain Annealed Copper Class 5

  • Insulation

    XLPO

  • Sheath

    XLPO

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    90°C

  • Core Colours

    Red and Black

  • Sheath Colours

    Black

The Characteristics of Twin Core Solar Cable

Application:
Twin core Solar cable is permitted to be installed in cable trays, wireways,conduits, etc. This cable meet the varying needs of the solar industry. Applications include cable routings from module strings to collect boxes and other required routings in balance of system integration.
Standard:
Twin Core Solar Cable certified according to EN 50618:2014
Product features:
Flame retardant,Weather/UV-resistant,Ozone-resistant,Good notch and abrasion resistance
Cable Construction:
Conductor : Fine Wire Tinned Copper Conductor according to BS EN 50618 cl. 5. Insulation : UV resistant, cross linkable, halogen free, flame retardant compound for core insulation. Core Identification : Red, black or natural Sheath : UV resistant, cross linkable, halogen free, flame retardant compound for Sheath over insulation. Cable Colour : Black or Red,Blue
Advantage:
1.Dual wall insulation.Electron beam cross-linked
2.Excellent resistance to U.V, oil, greases, oxygen, and ozone
3.Excellent resistance to abrasion
4.Halogen-free, flame retardant, low toxicity
5.Excellent flexibility and stripping performance
6.High Voltage and Current carrying capacity

Twin Core Solar Cable Parameter

Construction Conductor Construction Conductor Outer Resistance Max Current Capacity

n×mm²

n×m

mm

mm

Ω/Km

A

2×1.5

30×0.25

1.58

4.90

13.3

30

2×2.5

50×0.256

2.06

5.45

7.98

41

2×4.0

56×0.3

2.58

6.15

4.75

55

2×6

84×0.3

3.15

7.15

3.39

70

2×10

142×0.3

4.0

9.05

1.95

98

2×16

228×0.3

5.7

10.2

1.24

132

2×25

361×0.3

6.8

12.0

0.795

176

2×35

494×0.3

8.8

13.8

0.565

218

2×50

418×0.39

10.0

16.0

0.393

280

2×70

589×0.39

11.8

18.4

0.277

350

2×95

798×0.39

13.8

21.3

0.210

410

2×120

1007×0.39

15.6

21.6

0.164

480
