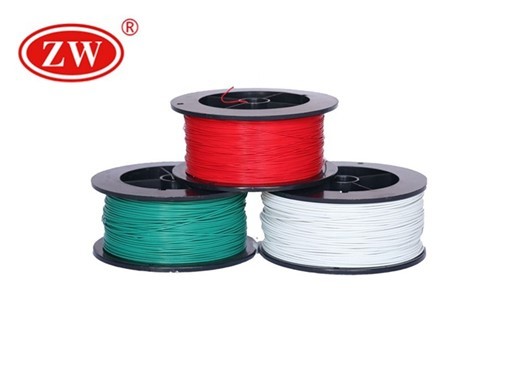

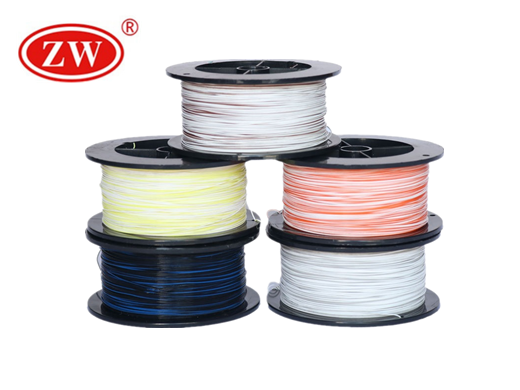

Teflon Hook Up Wire

  • Conductor:Tinned Copper
  • Insulation: FEP/PFA/PTFE
  • Insulation Color: Red - Yellow - Blue- White - Black- Yellow- Green - Brown - Orange- Purple
  • Temperature Range: 600V
  • Standard: ISO9001, UL, RoHS

Specification

  • Conductor

    Tinned Copper

  • Sheath

     FEP/PFA/PTFE

  • Min Operating Temperature

    -30°C

  • Max Operating Temperature

    200°C

  • Core Colours

    Red - Yellow - Blue- White - Black- Yellow- Green - Brown - Orange- Purple

  • Current Carrying Capacity

    For current ratings refer to UL Strandard

Product Description

Application:
Teflon Hook Up Wire is used for critical physiological and medical applications where small diameters, long flex-life and non-toxic insulations are of primary consideration. It’s designed for long usage in flow probes and pressure measuring instruments. It also withstands severe, repeated flexing in very high and low temperatures Ideal for any application where high temperature protection, flexibility, wire thinness, and a smooth, low coefficient of friction insulated wire is desired.
Standard:
UL,RHos
Advantage:
Very Good Mechanical Strength and Abrasion Resistance.
Excellent Electrical Insulating Properties Excellent Thermal Stability Resistant to Chemicals and Solvents.
Excellent Resistance to Ozone and Oxidation Good Flexibility Good Lubricity (low coefficient of friction).
Customer Service:
Being one of the leading Teflon Hook Up Wire manufacturers, we always put quality in the first place. In order to guarantee the performance of Teflon Hook Up Wire , ZW produce the cable in strict accordance with international standards. Our Teflon Hook Up Wire  is very popular in the world. We promise to provide the qualified products for our customers. If you to know more information about Teflon Hook Up Wire price, just leave your message.

Teflon Hook Up Wire Parameter

Conductor Insulation Max.Conductor Resistance DC 20ºC Ω/km Packing
AWG Conductor Construction No./dia.(mm) Diameter(mm) Insulation Thickness(mm) Out Diameter(mm) m/coil
36 7/0.05 0.15 0.085 0.32 1900 305
34 7/0.064 0.19 0.075 0.34 900 305
34 19/0.04 0.2 0.07 0.34 900
32 7/0.08 0.24 0.065 0.38 588.85 305
32 19/0.05 0.25 0.1 0.38 588.85
30 7/0.1 0.3 0.1 0.5 381 305
30 19/0.06 0.3 0.12 0.5 381
28 7/0.127 0.38 0.12 0.62 239 305
26 7/0.16 0.48 0.16 0.72 150 305
24 7/0.02 0.6 0.2 0.92 94.2 305
22 7/0.254 0.76 0.2 1.16 59.4 610
20 7/0.32 0.96 0.2 1.36 36.7 610
18 19/0.235 1.18 0.2 1.58 23.2 610
16 19/0.3 1.5 0.2 1.9 14.2 610
