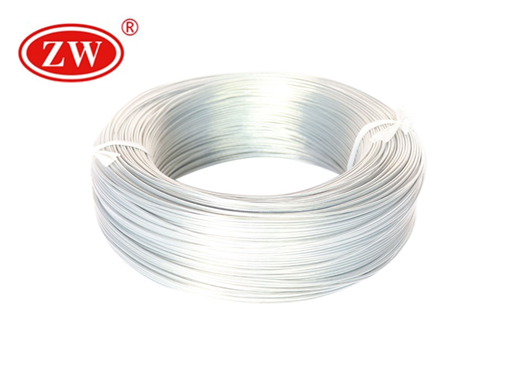

Teflon Insulated Silver Wire

  • Conductor:Silver
  • Insulation: FEP/PFA/PTFE
  • Insulation Color: Blue / Orange / Yellow / Gray / Red / Black / White / Green / Brown / Transparent,Etc
  • Temperature Range: 600V
  • Standard: ISO9001, UL, RoHS

Teflon Insulated Silver Wire

  • Conductor

    Silver

  • Sheath

      FEP/PFA/PTFE

  • Min Operating Temperature

    -30°C

  • Max Operating Temperature

    200°C

  • Core Colours

    Blue / Orange / Yellow / Gray / Red / Black / White / Green / Brown / Transparent,Etc

  • Current Carrying Capacity

    For current ratings refer to UL Strandard

The Characteristics of Teflon Insulated Silver Wire

Application:
There are other types of cheap high temperature wire for sale but when you compare teflon insulated silver wire you will find that they offer a variety of preferred benefits such as superior thermal stability, anti-mechanical pressure, wear resistance, and also electrical insulation. Silver Teflon wires are also commonly referred to as silver hook-up wires. Another benefit of Silver Teflon wires is the ability to resist strong acids and alkali. Silver Teflon wires are used in many applications because of their numerous beneficial characteristics.They are also used in applications that require high temperature heating conductors, flame retardant wires, ant aging wires, and low temperature resistant wires.
Standard:
UL758,UL1581
Advantage:
Insulated silver wires are therefore the preferred choice for a variety of home appliances, air-conditioning systems, and internal wiring applications. You will see this type of wire in electric ovens, light fixtures, microwave ovens, electric heaters, electronic sterilizers, electronic thermostats, and many other items. These wires are very reliable because they have so many qualities such as resistance to temperature, chemicals, moisture, and electrical. When an tool or product needs to be reliable than most companies rely on superior Silver Teflon wires.
Customer Service:
Being one of the leading produce Insulated Silver Wire, we always put quality in the first place. In order to guarantee the performance of ptfe silver plated stranded copper wire, ZW produce the cable in strict accordance with international standards. Our Teflon Insulated Siliver Wire is very popular in the world. We promise to provide the qualified products for our customers.

Insulated Silver Wire Parameter

Conductor Insulation Max.Conductor Resistance DC 20ºC Ω/km Packing
AWG Conductor Construction No./dia.(mm) Diameter(mm) Insulation Thickness(mm) Out Diameter(mm) m/coil
36 7/0.05 0.15 0.085 0.32 1900 305
34 7/0.064 0.19 0.075 0.34 900 305
34 19/0.04 0.2 0.07 0.34 900
32 7/0.08 0.24 0.065 0.38 588.85 305
32 19/0.05 0.25 0.1 0.38 588.85
30 7/0.1 0.3 0.1 0.5 381 305
30 19/0.06 0.3 0.12 0.5 381
28 7/0.127 0.38 0.12 0.62 239 305
26 7/0.16 0.48 0.16 0.72 150 305
24 7/0.02 0.6 0.2 0.92 94.2 305
22 7/0.254 0.76 0.2 1.16 59.4 610
20 7/0.32 0.96 0.2 1.36 36.7 610
18 19/0.235 1.18 0.2 1.58 23.2 610
16 19/0.3 1.5 0.2 1.9 14.2 610
