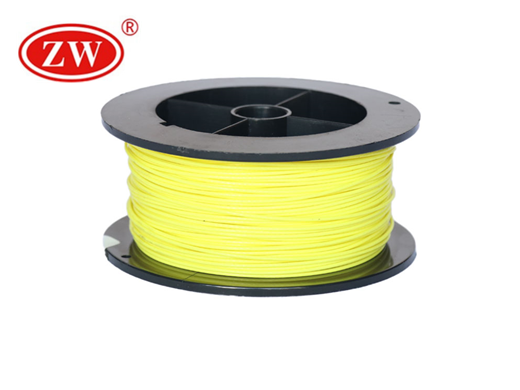

Teflon Wire 28 AWG

  • Conductor:Tinned Copper
  • Insulation: FEP/PFA/PTFE

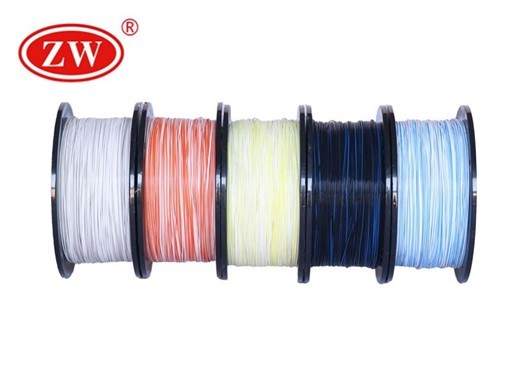

  • Insulation Color: Blue / Orange / Yellow / Gray / Red / Black / White / Green / Brown / Transparent,Etc
  • Temperature Range: 600V
  • Standard: ISO9001, UL, RoHS

Teflon Wire 28 AWG Specification

  • Conductor

    Tinned Copper

  • Sheath

      FEP/PFA/PTFE

  • Min Operating Temperature

    -30°C

  • Max Operating Temperature

    200°C

  • Core Colours

    Blue / Orange / Yellow / Gray / Red / Black / White / Green / Brown / Transparent,Etc

  • Current Carrying Capacity

    For current ratings refer to UL Strandard

The Characteristics of Teflon Wire 28 AWG

Application:
Teflon Wire 28 AWG uses electronic industry. It can be used for temperature compensation wire, low temperature wire, high temperature heating wire, anti-aging wire and flame retardant wire; household appliances industry, can be used for air conditioners, microwave ovens, electronic disinfection cabinet, rice cookers, electronic thermos, , Electric oven, electric wok, lighting, lighting and other internal wiring.
Standard:
UL758,UL1581
Advantage:
Has excellent corrosion resistance, almost insoluble in any organic solvent, can be anti-oil, strong acid, anti-alkali, strong oxidants, etc .;
Has excellent electrical insulation properties, high voltage, high frequency loss, no moisture absorption, insulation resistance Large; with excellent fire resistance, aging resistance, long service life.
Customer Service:
Being one of the leading cable manufacturers, we always put quality in the first place. In order to guarantee the performance of Teflon Wire 28 AWG , ZW produce the cable in strict accordance with international standards. Our Teflon Wire 28 AWG is very popular in the world. We promise to provide the qualified products for our customers.

Teflon Wire 28 AWG Parameter

Conductor Insulation Max.Conductor Resistance DC 20ºC Ω/km Packing
AWG Conductor Construction No./dia.(mm) Diameter(mm) Insulation Thickness(mm) Out Diameter(mm) m/coil
36 7/0.05 0.15 0.085 0.32 1900 305
34 7/0.064 0.19 0.075 0.34 900 305
34 19/0.04 0.2 0.07 0.34 900
32 7/0.08 0.24 0.065 0.38 588.85 305
32 19/0.05 0.25 0.1 0.38 588.85
30 7/0.1 0.3 0.1 0.5 381 305
30 19/0.06 0.3 0.12 0.5 381
28 7/0.127 0.38 0.12 0.62 239 305
26 7/0.16 0.48 0.16 0.72 150 305
24 7/0.02 0.6 0.2 0.92 94.2 305
22 7/0.254 0.76 0.2 1.16 59.4 610
20 7/0.32 0.96 0.2 1.36 36.7 610
18 19/0.235 1.18 0.2 1.58 23.2 610
16 19/0.3 1.5 0.2 1.9 14.2 610
