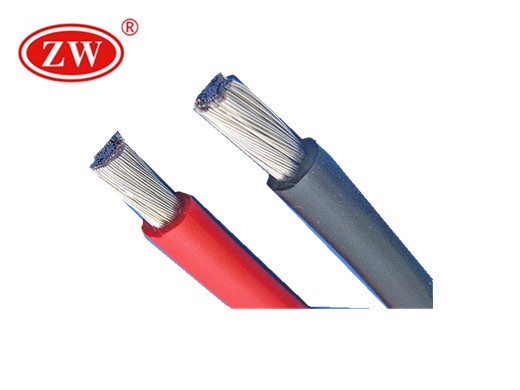

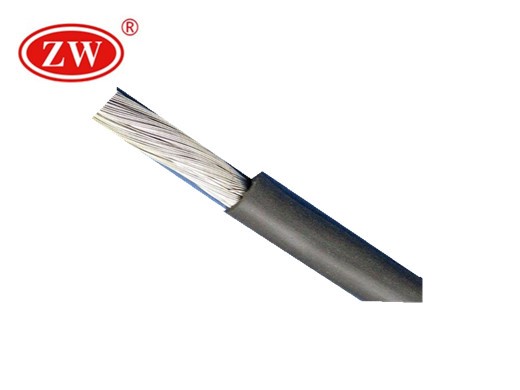

Tinned Copper Marine Battery Cable

Marine Battery Cable Specification

Application:: Tinned Copper Marine Battery Cable is very similar to flexible battery cable except that the copper conductors are tin plated, making them more suitable for marine and other corrosive environments
Standard:
Extra Flexibility:: When high flexibility required, battery cable shall make a substitute.
Battery Cable Advantage:: High performance of resistant to abrasion, cracking and a variety of chemicals including gasoline, oils, diesel fuels, grease, and acid.
Suitable Uses:: Automotive Battery Cables Marine / Boat Battery Cables Solar Battery Bank Array Forklift Charging Cables Power Inverter Cables Welding Cable Leads Golf Cart Battery Cables Amplifier Wiring ...and many other uses

Conductor Size	Stranding(0.25mm)225	Conductor Diameter(in.)	Insulation Thickness(in.)	Total Diameter(in.)	Max Amp
6 AWG	253	0.20	0.06	0.32	115
4 AWG	370	0.23	0.06	0.35	150
2 AWG	634	0.30	0.06	0.42	205
1/0	1004	0.47	0.08	0.53	285
2/0	1255	0.43	0.08	0.59	325
4/0	2047	0.56	0.08	0.72	440
