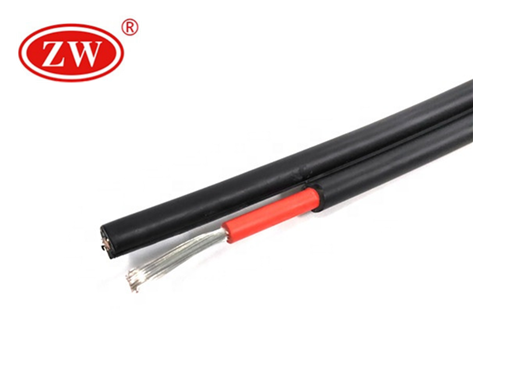

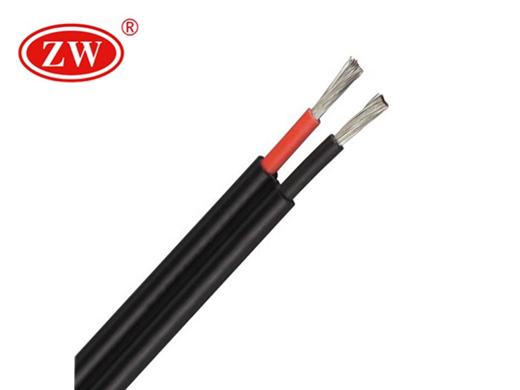

Twin Core Solar Cable 6mm

  • Conductor: Tinnd Copper
  • Insulation: XLPO
  • Insulation Color: Red and Black
  • Temperature Range: -20°C to +90°C
  • Nominal Voltage: 0.6/1KV
  • Test Voltage: 3.5 KV
  • Standard: TUV
Get A Quote For Free

6mm twin core solar cable Specification

  • Conductor

    Plain Annealed Copper Class 5

  • Insulation

    XLPO

  • Sheath

    XLPO

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    90°C

  • Core Colours

    Red and Black

  • Sheath Colours

    Black

The Characteristics of Twin Core Solar Cable 6mm

Application:
Twin core 6mm cable is permitted to be installed in cable trays, wireways,conduits, etc. This cable meet the varying needs of the solar industry. Applications include cable routings from module strings to collect boxes and other required routings in balance of system integration.
Standard:
Twin Core Solar Cable certified according to EN 50618:2014
Product features:
Flame retardant,Weather/UV-resistant,Ozone-resistant,Good notch and abrasion resistance
Cable Construction:
Conductor : Fine Wire Tinned Copper Conductor according to BS EN 50618 cl. 5.
Insulation : UV resistant, cross linkable, halogen free, flame retardant compound for core insulation.
Core Identification : Red, black or natural Sheath :
UV resistant, cross linkable, halogen free, flame retardant compound for Sheath over insulation.
Cable Colour : Black or Red,Blue
6mm twin core solar cable Advantage:
1. 99.9% high-purity oxygen-free copper: high quality tin-plated copper, high purity, anti-aging, high electrical conductivity, low loss, strong current carrying capacity, high corrosion resistance, and can adapt to outdoor harsh environment.
2, low eccentricity: thickness uniformity, effectively prevent the current breakdown fire, to ensure safety.
3. Double protection: The photovoltaic cable adopts insulation and Jacket double protection structure to extend the service life of the cable.
4, high-performance polymer materials: Insulating and jacket all use environmentally friendly low-smoke halogen-free flame-retardant cross-linked polyolefin materials, with wear-resistant, high temperature, oil, ozone, UV, high flame retardant properties.
5, strong flexibility: cable has a pressure, bending, strong toughness.
6, long service life: normal outdoor use, service life> 25 years
7, advanced equipment: The company has advanced foreign production, scientific research equipment, passed the ISO9001-2008 quality management system certification, IATF16949: 2016 quality management system certification.

6mm twin core solar cable Parameter

Construction Conductor Construction Conductor Outer Resistance Max Current Carring Capacity

n×mm²

n×m

mm

mm

Ω/Km

A

2×1.5

30×0.25

1.58

4.90

13.3

30

2×2.5

50×0.256

2.06

5.45

7.98

41

2×4.0

56×0.3

2.58

6.15

4.75

55

2×6

84×0.3

3.15

7.15

3.39

70

2×10

142×0.3

4.0

9.05

1.95

98

2×16

228×0.3

5.7

10.2

1.24

132

2×25

361×0.3

6.8

12.0

0.795

176

2×35

494×0.3

8.8

13.8

0.565

218

2×50

418×0.39

10.0

16.0

0.393

280

2×70

589×0.39

11.8

18.4

0.277

350

2×95

798×0.39

13.8

21.3

0.210

410

2×120

1007×0.39

15.6

21.6

0.164

480
