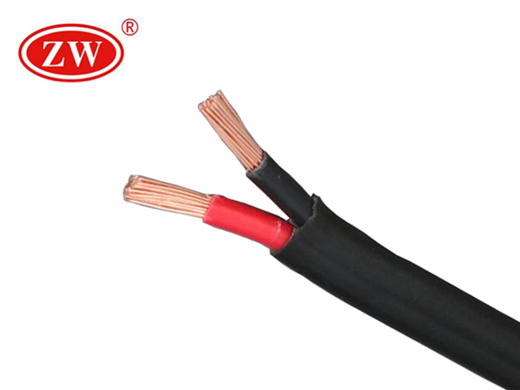

Twin Flex Wire

  • Conductor: Copper
  • Insulation: PVC
  • Insulation Color: Red
  • Temperature Range: -20°C to +70°C
  • Nominal Voltage: 450/750V
  • Test Voltage: 1000V
  • Standard:IEC

Twin Flex Wire Specification

  • Conductor

    Plain Annealed Copper Class 5 to BS EN 60228

  • Insulation

    PVC

  • Sheath

    PVC

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    70°C

  • Core Colours

    Red

  • Sheath Colours

    Red

  • Current Carrying Capacity

    For current ratings refer to IEC

The Characteristics of Twin Flex wire

Application:

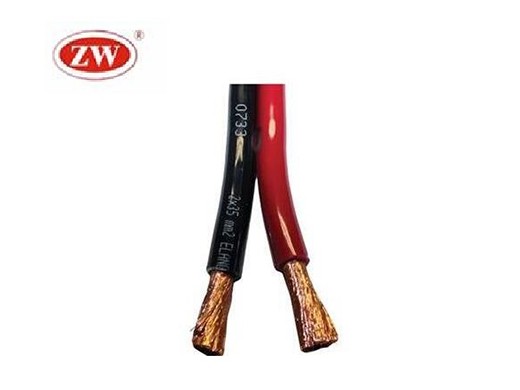

Our Twin Flex wire is a highly flexible double-insulated dual-core cable with Class 6 extra flexible copper conductors. It has a figure of 8 configuration. Used for Automation and Process Control, it is suitable for motorised vehicles and battery powered equipment such as forklifts and field conveyors. It is also suitable for use in high-quality booster cables. Twinflex cable is designed for installation both indoors and outdoors, in wet and dry locations
Standard:
Twin Flex wire
Extra Flexibility:
When high flexibility required, battery cable shall make a substitute.
Advantage:
1.High performance of resistant to abrasion, cracking and a variety of chemicals including gasoline, oils, diesel fuels, grease, and acid.
2.Twin Flex wire is fit for rated voltage 450/750V and below of domestic appliances, of small size motorlize tools of instrument.
3.We can also privide this kind of cable with fuction like fire resistance, flame retardant, low smoke &halogen-free, etc.

Twin Flex Wire Parameter

Nominal section(mm2) No./dia. of core(mm)  dia.(mm) Reference weight(kg/km) Conductor resistance at 20℃(Ω/km)
2*10 322/0.20 7.9*17.6 294 1.91
2*16 513/0.20 10*21.5 420 1.61
2*25 798/0.20 11.2*24.3 627 0.758
2*35 1121/0.20 12.4*24 824 0.536
2*50 1596/0.20 14.5*30.5 1132 0.379
2*70 2214/0.20 17.2*30.5 1600 818.1
2*95 2997/0.20 18.4*38.6 2080 0.198
