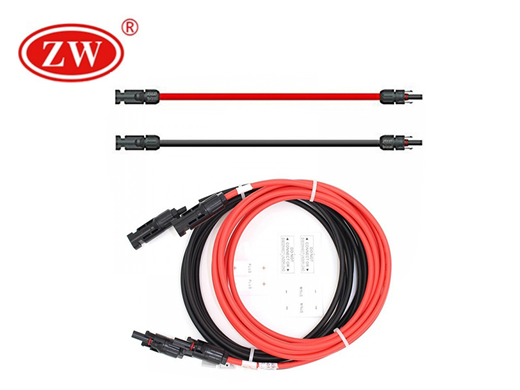

Single Core Solar Panel Cable

  • Conductor: Tinnd Copper
  • Insulation: XLPO
  • Insulation Color: Red,Black
  • Temperature Range: -20°C to +90°C
  • Nominal Voltage: 0.6/1KV
  • Test Voltage: 3.5 KV
  • Standard: TUV,UL

Solar Panel Cable Specification

  • Conductor

    Plain Annealed Copper Class 5.

  • Insulation

    XLPO

  • Sheath

    XLPO

  • Min Operating Temperature

    -40°C

  • Max Operating Temperature

    90°C

  • Core Colours

    Red or Black

  • Sheath Colours

    Red or Black

The Characteristics of Solar Panel Cable

Application:
Solar Panel Cable is appropriate for use in solar power applications that require 600 volt rating. For use in grounded interconnection and ungrounded Photovoltaic power systems.
Solar Panel Cable Standard:
Adapted to PV systems, 2 Pfg 1169 / 08.2007 and UL.
 Single Core Solar Panel Cable Electrical Parameters:
Voltage Rating : AC 0.6 / 1.0 kV Max. PV - System Voltage : DC up to 2.0 kV possible Max. Permissible Operating Voltage in AC Systems : 0.7 / 1.2 kV Max. Permissible Operating Voltage in DC Systems : 0.9 / 1.8 kV Test Voltage : AC 6 kV / DC 10 kV (15 min.)
 Cable Construction:
Conductor : Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.
Insulation : UV resistant, cross linkable, halogen free, flame retardant compound for core insulation.
Core Identification : Red, black or natural
Sheath : UV resistant, cross linkable, halogen free, flame retardant compound for Sheath over insulation.
Cable Colour : Black or Red
Solar Cable Advantage:
Single Core Solar Panel Cable modules operate at high temperatures and are exposed to a variety of environmental conditions.
The NEC limits various PV array applications to USE-2 or PV wire. These cables need to meet the required sunlight resistance and temperature ratings for the environment.
FAQ:
How do I choose solar panel cable size?
We have many solar cable types. So We calculate according to the current of the photovoltaic wire, for example for 45A we choose solar panel cable 4mm.
What size wire do I need 50 amps?
We suggest you choose solar panel cable 6mm. Safety amps for solar cable 6mm is 54A.
How many amps can solar cable 16mm take??
Safety amps for solar cable 16mm is 97A.
Do you accept lower MOQ?
Yes, we accept. If you need lower MOQ, we have solar panel cables and connectors in stock.

Solar Panel Cable Parameter

Construction Conductor Construction Conductor Outer Resistance Max Current Carring Capacity

n×mm2

n×mm

mm

mm

Ω/Km

A

1×1.5

30×0.25

1.58

4.90

13.3

30

1×2.5

50×0.256

2.06

5.45

7.98

41

1×4.0

56×0.3

2.58

6.15

4.75

55

1×6

84×0.3

3.15

7.15

3.39

70

1×10

142×0.3

4.0

9.05

1.95

98

1×16

228×0.3

5.7

10.2

1.24

132

1×25

361×0.3

6.8

12.0

0.795

176

1×35

494×0.3

8.8

13.8

0.565

218

1×50

418×0.39

10.0

16.0

0.393

280

1×70

589×0.39

11.8

18.4

0.277

350

1×95

798×0.39

13.8

21.3

0.210

410

1×120

1007×0.39

15.6

21.6

0.164

480
